Documentation for Open Vulnerability and Assessment Language (OVAL®)
Definition Type: Element
Name: oslevel_item
Namespace: http://oval.mitre.org/XMLSchema/oval-system-characteristics-5#aix
Type: oval-sc:ItemType
Containing Schema: aix-system-characteristics-schema.xsd
Abstract
Documentation:
Information about the release and maintenance level of AIX operating system. This information can be retrieved by the /usr/bin/oslevel -r command.

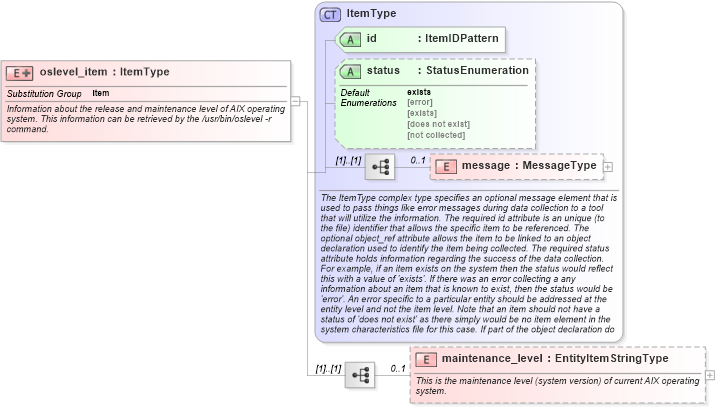

Collapse XSD Schema Diagram:
Drilldown into maintenance_level in schema aix-system-characteristics-schema_xsd Drilldown into message in schema oval-system-characteristics-schema_xsd Drilldown into status in schema oval-system-characteristics-schema_xsd Drilldown into id in schema oval-system-characteristics-schema_xsd Drilldown into ItemType in schema oval-system-characteristics-schema_xsdXSD Diagram of oslevel_item in schema aix-system-characteristics-schema_xsd (Open Vulnerability and Assessment Language (OVAL®))
Collapse XSD Schema Code:
<xsd:element name="oslevel_item" substitutionGroup="oval-sc:item">
    <xsd:annotation>
        <xsd:documentation>Information about the release and maintenance level of AIX operating system. This information can be retrieved by the /usr/bin/oslevel -r command.</xsd:documentation>
    </xsd:annotation>
    <xsd:complexType>
        <xsd:complexContent>
            <xsd:extension base="oval-sc:ItemType">
                <xsd:sequence>
                    <xsd:element name="maintenance_level" type="oval-sc:EntityItemStringType" minOccurs="0" maxOccurs="1">
                        <xsd:annotation>
                            <xsd:documentation>This is the maintenance level (system version) of current AIX operating system.</xsd:documentation>
                            <xsd:appinfo>
                                <sch:pattern id="oslevelitemmaintenance_level" xmlns:sch="http://purl.oclc.org/dsdl/schematron">
                                    <sch:rule context="aix-sc:oslevel_item/aix-sc:maintenance_level">
                                        <sch:assert test="@datatype='version'">item <sch:value-of select="../@id" /> - datatype attribute for the maintenance_level entity of an oslevel_item should be 'version'</sch:assert>
                                    </sch:rule>
                                </sch:pattern>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                </xsd:sequence>
            </xsd:extension>
        </xsd:complexContent>
    </xsd:complexType>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
message oval-sc:message 0 1
maintenance_level aix-sc:maintenance_level 0 1
Collapse Child Attributes:
Name Type Default Value Use
id oval-sc:id Required
status oval-sc:status exists Optional
Collapse Derivation Tree:
Collapse References:
oval-sc:item
