<xsd:element name="passwordpolicy_item" substitutionGroup="oval-sc:item">
<xsd:annotation>
<xsd:documentation>Specific policy items associated with passwords. Information is stored in the SAM or Active Directory but is encrypted or hidden so the registry_item and activedirectory_item are of no use. If this can be figured out, then the password_policy item is not needed.</xsd:documentation>
</xsd:annotation>
<xsd:complexType>
<xsd:complexContent>
<xsd:extension base="oval-sc:ItemType">
<xsd:sequence>
<xsd:element name="max_passwd_age" type="oval-sc:EntityItemIntType" minOccurs="0" maxOccurs="1">
<xsd:annotation>
<xsd:documentation>Specifies, in seconds, the maximum allowable password age. A value of TIMEQ_FOREVER (-1) indicates that the password never expires. The minimum valid value for this element is ONE_DAY (86400).</xsd:documentation>
<xsd:appinfo>
<sch:pattern id="ppitemmax_passwd_age" xmlns:sch="http://purl.oclc.org/dsdl/schematron">
<sch:rule context="win-sc:passwordpolicy_item/win-sc:max_passwd_age">
<sch:assert test="@datatype='int'">item <sch:value-of select="../@id" /> - datatype attribute for the max_passwd_age entity of a passwordpolicy_item should be 'int'</sch:assert>
</sch:rule>
</sch:pattern>
</xsd:appinfo>
</xsd:annotation>
</xsd:element>
<xsd:element name="min_passwd_age" type="oval-sc:EntityItemIntType" minOccurs="0" maxOccurs="1">
<xsd:annotation>
<xsd:documentation>Specifies the minimum number of seconds that can elapse between the time a password changes and when it can be changed again. A value of zero indicates that no delay is required between password updates.</xsd:documentation>
<xsd:appinfo>
<sch:pattern id="ppitemmin_passwd_age" xmlns:sch="http://purl.oclc.org/dsdl/schematron">
<sch:rule context="win-sc:passwordpolicy_item/win-sc:min_passwd_age">
<sch:assert test="@datatype='int'">item <sch:value-of select="../@id" /> - datatype attribute for the min_passwd_age entity of a passwordpolicy_item should be 'int'</sch:assert>
</sch:rule>
</sch:pattern>
</xsd:appinfo>
</xsd:annotation>
</xsd:element>
<xsd:element name="min_passwd_len" type="oval-sc:EntityItemIntType" minOccurs="0" maxOccurs="1">
<xsd:annotation>
<xsd:documentation>Specifies the minimum allowable password length. Valid values for this element are zero through PWLEN.</xsd:documentation>
<xsd:appinfo>
<sch:pattern id="ppitemmin_passwd_len" xmlns:sch="http://purl.oclc.org/dsdl/schematron">
<sch:rule context="win-sc:passwordpolicy_item/win-sc:min_passwd_len">
<sch:assert test="@datatype='int'">item <sch:value-of select="../@id" /> - datatype attribute for the min_passwd_len entity of a passwordpolicy_item should be 'int'</sch:assert>
</sch:rule>
</sch:pattern>
</xsd:appinfo>
</xsd:annotation>
</xsd:element>
<xsd:element name="password_hist_len" type="oval-sc:EntityItemIntType" minOccurs="0" maxOccurs="1">
<xsd:annotation>
<xsd:documentation>Specifies the length of password history maintained. A new password cannot match any of the previous usrmod0_password_hist_len passwords. Valid values for this element are zero through DEF_MAX_PWHIST.</xsd:documentation>
<xsd:appinfo>
<sch:pattern id="ppitempassword_hist_len" xmlns:sch="http://purl.oclc.org/dsdl/schematron">
<sch:rule context="win-sc:passwordpolicy_item/win-sc:password_hist_len">
<sch:assert test="@datatype='int'">item <sch:value-of select="../@id" /> - datatype attribute for the password_hist_len entity of a passwordpolicy_item should be 'int'</sch:assert>
</sch:rule>
</sch:pattern>
</xsd:appinfo>
</xsd:annotation>
</xsd:element>
<xsd:element name="password_complexity" type="oval-sc:EntityItemBoolType" minOccurs="0" maxOccurs="1">
<xsd:annotation>
<xsd:documentation>A boolean value that signifies whether passwords must meet the complexity requirements put forth by the operating system.</xsd:documentation>
<xsd:appinfo>
<sch:pattern id="ppitempassword_complexity" xmlns:sch="http://purl.oclc.org/dsdl/schematron">
<sch:rule context="win-sc:passwordpolicy_item/win-sc:password_complexity">
<sch:assert test="@datatype='boolean'">item <sch:value-of select="../@id" /> - datatype attribute for the password_complexity entity of a passwordpolicy_item should be 'boolean'</sch:assert>
</sch:rule>
</sch:pattern>
</xsd:appinfo>
</xsd:annotation>
</xsd:element>
<xsd:element name="reversible_encryption" type="oval-sc:EntityItemBoolType" minOccurs="0" maxOccurs="1">
<xsd:annotation>
<xsd:documentation>Determines whether Windows 2000 Server, Windows 2000 Professional, and Windows XP Professional store passwords using reversible encryption.</xsd:documentation>
<xsd:appinfo>
<sch:pattern id="ppitemreversible_encryption" xmlns:sch="http://purl.oclc.org/dsdl/schematron">
<sch:rule context="win-sc:passwordpolicy_item/win-sc:reversible_encryption">
<sch:assert test="@datatype='boolean'">item <sch:value-of select="../@id" /> - datatype attribute for the reversible_encryption entity of a passwordpolicy_item should be 'boolean'</sch:assert>
</sch:rule>
</sch:pattern>
</xsd:appinfo>
</xsd:annotation>
</xsd:element>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
</xsd:element>
|

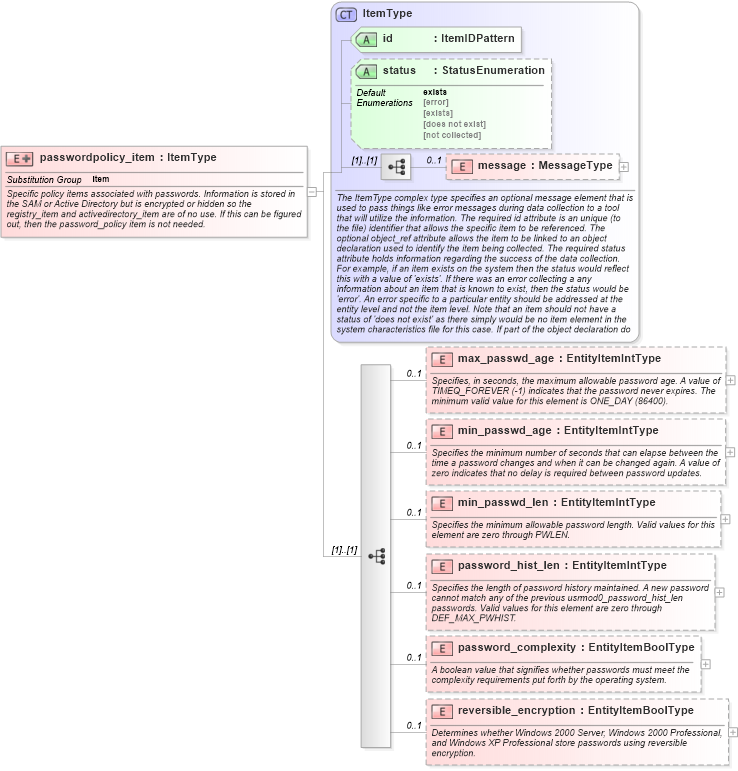

XSD Schema Diagram:
