Documentation for Open Vulnerability and Assessment Language (OVAL®)
Definition Type: Element
Name: patch_state
Namespace: http://oval.mitre.org/XMLSchema/oval-definitions-5#esx
Type: oval-def:StateType
Containing Schema: esx-definitions-schema.xsd
Abstract
Documentation:
The patch_state element defines the information about a specific patch. The patch_number element identifies this patch, and the status element reveals the installation status of this patch in the VMware ESX server. For instance, after the "esxupdate query | grep ESX-2559638" command is run, the result is either a string similar to "ESX-2559638 15:27:17 04/05/07 Update info rpm for ESX 3.0.1." or empty.
Collapse XSD Schema Diagram:

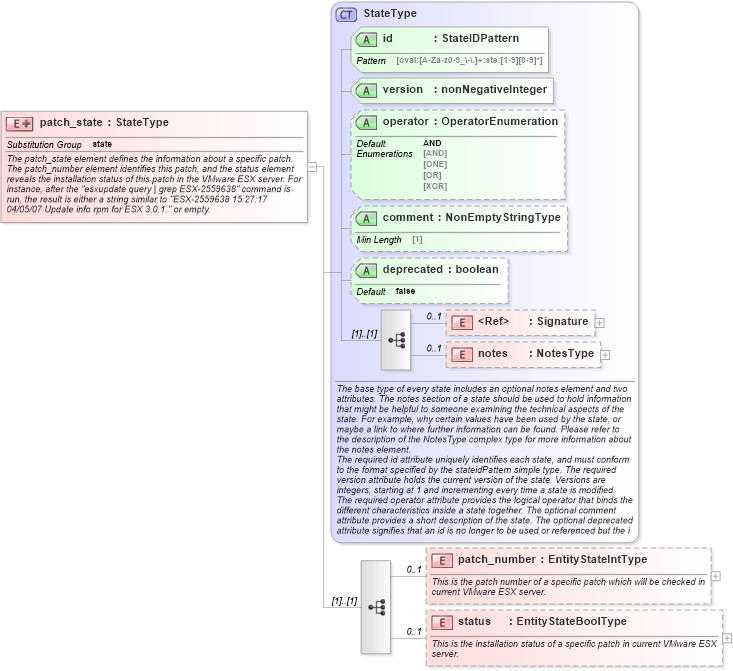

Drilldown into status in schema esx-definitions-schema_xsd Drilldown into patch_number in schema esx-definitions-schema_xsd Drilldown into notes in schema oval-definitions-schema_xsd Drilldown into Signature in schema xmldsig-core-schema_xsd Drilldown into deprecated in schema oval-definitions-schema_xsd Drilldown into comment in schema oval-definitions-schema_xsd Drilldown into operator in schema oval-definitions-schema_xsd Drilldown into version in schema oval-definitions-schema_xsd Drilldown into id in schema oval-definitions-schema_xsd Drilldown into StateType in schema oval-definitions-schema_xsdXSD Diagram of patch_state in schema esx-definitions-schema_xsd (Open Vulnerability and Assessment Language (OVAL®))
Collapse XSD Schema Code:
<xsd:element name="patch_state" substitutionGroup="oval-def:state">
    <xsd:annotation>
        <xsd:documentation>The patch_state element defines the information about a specific patch. The patch_number element identifies this patch, and the status element reveals the installation status of this patch in the VMware ESX server. For instance, after the "esxupdate query | grep ESX-2559638" command is run, the result is either a string similar to "ESX-2559638 15:27:17 04/05/07 Update info rpm for ESX 3.0.1." or empty.</xsd:documentation>
    </xsd:annotation>
    <xsd:complexType>
        <xsd:complexContent>
            <xsd:extension base="oval-def:StateType">
                <xsd:sequence>
                    <xsd:element name="patch_number" type="oval-def:EntityStateIntType" minOccurs="0" maxOccurs="1">
                        <xsd:annotation>
                            <xsd:documentation>This is the patch number of a specific patch which will be checked in current VMware ESX server.</xsd:documentation>
                            <xsd:appinfo>
                                <sch:pattern id="esxpatchstepatch_number" xmlns:sch="http://purl.oclc.org/dsdl/schematron">
                                    <sch:rule context="esx-def:patch_state/esx-def:patch_number">
                                        <sch:assert test="@datatype='int'">
                                            <sch:value-of select="../@id" /> - datatype attribute for the patch_number entity of a patch_state should be 'int'</sch:assert>
                                    </sch:rule>
                                </sch:pattern>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                    <xsd:element name="status" type="oval-def:EntityStateBoolType" minOccurs="0" maxOccurs="1">
                        <xsd:annotation>
                            <xsd:documentation>This is the installation status of a specific patch in current VMware ESX server.</xsd:documentation>
                            <xsd:appinfo>
                                <sch:pattern id="esxpatchstestatus" xmlns:sch="http://purl.oclc.org/dsdl/schematron">
                                    <sch:rule context="esx-def:patch_state/esx-def:status">
                                        <sch:assert test="@datatype='boolean'">
                                            <sch:value-of select="../@id" /> - datatype attribute for the status entity of a patch_state should be 'boolean'</sch:assert>
                                    </sch:rule>
                                </sch:pattern>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                </xsd:sequence>
            </xsd:extension>
        </xsd:complexContent>
    </xsd:complexType>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Signature ds:Signature 0 1
notes oval-def:notes 0 1
patch_number esx-def:patch_number 0 1
status esx-def:status 0 1
Collapse Child Attributes:
Name Type Default Value Use
id oval-def:id Required
version oval-def:version Required
operator oval-def:operator AND Optional
comment oval-def:comment Optional
deprecated oval-def:deprecated false Optional
Collapse Derivation Tree:
Collapse References:
oval-def:state
