Definition Type: Element
Name: port_state
Namespace: http://oval.mitre.org/XMLSchema/oval-definitions-5#windows
Type: oval-def:StateType
Containing Schema: windows-definitions-schema.xsd
Abstract
Documentation:
The port_state element defines the different metadata associate with a Windows port. This includes the local address, port number, protocol, and pid. Please refer to the individual elements in the schema for more details about what each represents.

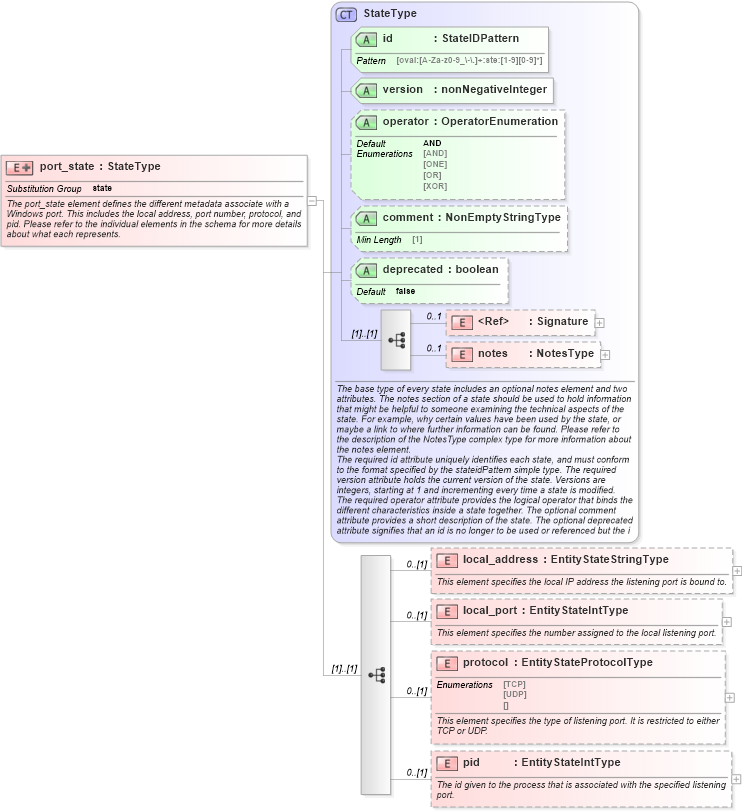

Collapse XSD Schema Diagram:
Drilldown into pid in schema windows-definitions-schema_xsd Drilldown into protocol in schema windows-definitions-schema_xsd Drilldown into local_port in schema windows-definitions-schema_xsd Drilldown into local_address in schema windows-definitions-schema_xsd Drilldown into notes in schema oval-definitions-schema_xsd Drilldown into Signature in schema xmldsig-core-schema_xsd Drilldown into deprecated in schema oval-definitions-schema_xsd Drilldown into comment in schema oval-definitions-schema_xsd Drilldown into operator in schema oval-definitions-schema_xsd Drilldown into version in schema oval-definitions-schema_xsd Drilldown into id in schema oval-definitions-schema_xsd Drilldown into StateType in schema oval-definitions-schema_xsdXSD Diagram of port_state in schema windows-definitions-schema_xsd (Open Vulnerability and Assessment Language (OVAL®))
Collapse XSD Schema Code:
<xsd:element name="port_state" substitutionGroup="oval-def:state">
    <xsd:annotation>
        <xsd:documentation>The port_state element defines the different metadata associate with a Windows port. This includes the local address, port number, protocol, and pid. Please refer to the individual elements in the schema for more details about what each represents.</xsd:documentation>
    </xsd:annotation>
    <xsd:complexType>
        <xsd:complexContent>
            <xsd:extension base="oval-def:StateType">
                <xsd:sequence>
                    <xsd:element name="local_address" type="oval-def:EntityStateStringType" minOccurs="0">
                        <xsd:annotation>
                            <xsd:documentation>This element specifies the local IP address the listening port is bound to.</xsd:documentation>
                            <xsd:appinfo>
                                <sch:pattern id="winportstelocal_address" xmlns:sch="http://purl.oclc.org/dsdl/schematron">
                                    <sch:rule context="win-def:port_state/win-def:local_address">
                                        <sch:assert test="not(@datatype) or @datatype='string'">
                                            <sch:value-of select="../@id" /> - datatype attribute for the local_address entity of a port_state should be 'string'</sch:assert>
                                    </sch:rule>
                                </sch:pattern>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                    <xsd:element name="local_port" type="oval-def:EntityStateIntType" minOccurs="0">
                        <xsd:annotation>
                            <xsd:documentation>This element specifies the number assigned to the local listening port.</xsd:documentation>
                            <xsd:appinfo>
                                <sch:pattern id="winportstelocal_port" xmlns:sch="http://purl.oclc.org/dsdl/schematron">
                                    <sch:rule context="win-def:port_state/win-def:local_port">
                                        <sch:assert test="@datatype='int'">
                                            <sch:value-of select="../@id" /> - datatype attribute for the local_port entity of a port_state should be 'int'</sch:assert>
                                    </sch:rule>
                                </sch:pattern>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                    <xsd:element name="protocol" type="win-def:EntityStateProtocolType" minOccurs="0">
                        <xsd:annotation>
                            <xsd:documentation>This element specifies the type of listening port. It is restricted to either TCP or UDP.</xsd:documentation>
                            <xsd:appinfo>
                                <sch:pattern id="winportsteprotocol" xmlns:sch="http://purl.oclc.org/dsdl/schematron">
                                    <sch:rule context="win-def:port_state/win-def:protocol">
                                        <sch:assert test="not(@datatype) or @datatype='string'">
                                            <sch:value-of select="../@id" /> - datatype attribute for the protocol entity of a port_state should be 'string'</sch:assert>
                                    </sch:rule>
                                </sch:pattern>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                    <xsd:element name="pid" type="oval-def:EntityStateIntType" minOccurs="0">
                        <xsd:annotation>
                            <xsd:documentation>The id given to the process that is associated with the specified listening port.</xsd:documentation>
                            <xsd:appinfo>
                                <sch:pattern id="winportstepid" xmlns:sch="http://purl.oclc.org/dsdl/schematron">
                                    <sch:rule context="win-def:port_state/win-def:pid">
                                        <sch:assert test="@datatype='int'">
                                            <sch:value-of select="../@id" /> - datatype attribute for the pid entity of a port_state should be 'int'</sch:assert>
                                    </sch:rule>
                                </sch:pattern>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                </xsd:sequence>
            </xsd:extension>
        </xsd:complexContent>
    </xsd:complexType>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Signature ds:Signature 0 1
notes oval-def:notes 0 1
local_address win-def:local_address 0 (1)
local_port win-def:local_port 0 (1)
protocol win-def:protocol 0 (1)
pid win-def:pid 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
id oval-def:id Required
version oval-def:version Required
operator oval-def:operator AND Optional
comment oval-def:comment Optional
deprecated oval-def:deprecated false Optional
Collapse Derivation Tree:
Collapse References:
oval-def:state
