Documentation for Open Vulnerability and Assessment Language (OVAL®)
Definition Type: Element
Name: smf_object
Namespace: http://oval.mitre.org/XMLSchema/oval-definitions-5#solaris
Type: oval-def:ObjectType
Containing Schema: solaris-definitions-schema.xsd
Abstract
Documentation:
The smf_object element is used by a smf_test to define the specific service instance to be evaluated. Each object extends the standard ObjectType as definied in the oval-definitions-schema and one should refer to the ObjectType description for more information. The common set element allows complex objects to be created using filters and set logic. Again, please refer to the description of the set element in the oval-definitions-schema. A smf_object consists of a service_name entity that identifies the service and a fmri entity that represents the fault management resource identifier.
Collapse XSD Schema Diagram:

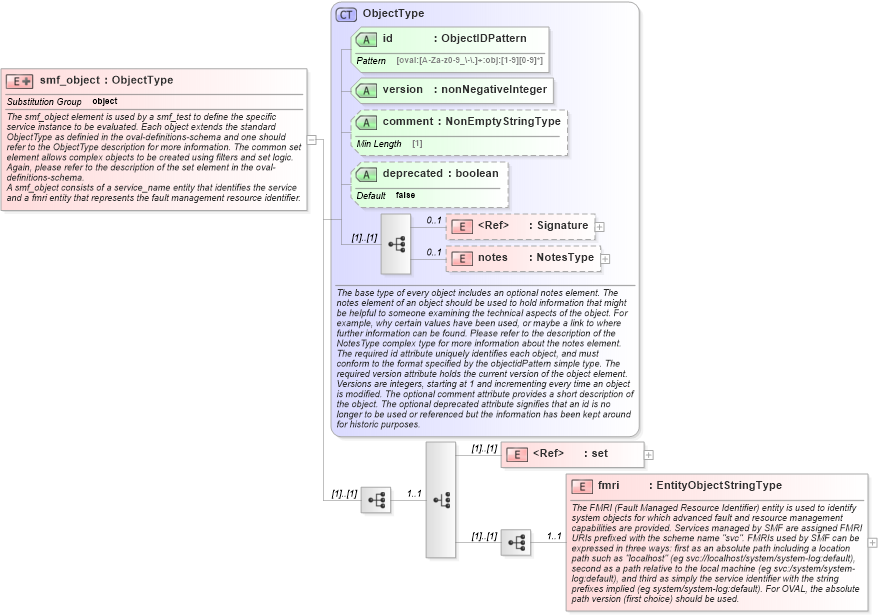

Drilldown into fmri in schema solaris-definitions-schema_xsd Drilldown into set in schema oval-definitions-schema_xsd Drilldown into notes in schema oval-definitions-schema_xsd Drilldown into Signature in schema xmldsig-core-schema_xsd Drilldown into deprecated in schema oval-definitions-schema_xsd Drilldown into comment in schema oval-definitions-schema_xsd Drilldown into version in schema oval-definitions-schema_xsd Drilldown into id in schema oval-definitions-schema_xsd Drilldown into ObjectType in schema oval-definitions-schema_xsdXSD Diagram of smf_object in schema solaris-definitions-schema_xsd (Open Vulnerability and Assessment Language (OVAL®))
Collapse XSD Schema Code:
<xsd:element name="smf_object" substitutionGroup="oval-def:object">
    <xsd:annotation>
        <xsd:documentation>The smf_object element is used by a smf_test to define the specific service instance to be evaluated. Each object extends the standard ObjectType as definied in the oval-definitions-schema and one should refer to the ObjectType description for more information. The common set element allows complex objects to be created using filters and set logic. Again, please refer to the description of the set element in the oval-definitions-schema.</xsd:documentation>
        <xsd:documentation>A smf_object consists of a service_name entity that identifies the service and a fmri entity that represents the fault management resource identifier.</xsd:documentation>
    </xsd:annotation>
    <xsd:complexType>
        <xsd:complexContent>
            <xsd:extension base="oval-def:ObjectType">
                <xsd:sequence>
                    <xsd:choice minOccurs="1" maxOccurs="1">
                        <xsd:element ref="oval-def:set" />
                        <xsd:sequence>
                            <xsd:element name="fmri" type="oval-def:EntityObjectStringType" minOccurs="1" maxOccurs="1">
                                <xsd:annotation>
                                    <xsd:documentation>The FMRI (Fault Managed Resource Identifier) entity is used to identify system objects for which advanced fault and resource management capabilities are provided. Services managed by SMF are assigned FMRI URIs prefixed with the scheme name "svc". FMRIs used by SMF can be expressed in three ways: first as an absolute path including a location path such as "localhost" (eg svc://localhost/system/system-log:default), second as a path relative to the local machine (eg svc:/system/system-log:default), and third as simply the service identifier with the string prefixes implied (eg system/system-log:default). For OVAL, the absolute path version (first choice) should be used.</xsd:documentation>
                                    <xsd:appinfo>
                                        <sch:pattern id="fmriobjbase" xmlns:sch="http://purl.oclc.org/dsdl/schematron">
                                            <sch:rule context="sol-def:smf_object/sol-def:fmri">
                                                <sch:assert test="not(@datatype) or @datatype='string'">
                                                    <sch:value-of select="../@id" /> - datatype attribute for the fmri entity of a smf_object should be 'string'</sch:assert>
                                            </sch:rule>
                                        </sch:pattern>
                                    </xsd:appinfo>
                                </xsd:annotation>
                            </xsd:element>
                        </xsd:sequence>
                    </xsd:choice>
                </xsd:sequence>
            </xsd:extension>
        </xsd:complexContent>
    </xsd:complexType>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Signature ds:Signature 0 1
notes oval-def:notes 0 1
set oval-def:set (1) (1)
fmri sol-def:fmri 1 1
Collapse Child Attributes:
Name Type Default Value Use
id oval-def:id Required
version oval-def:version Required
comment oval-def:comment Optional
deprecated oval-def:deprecated false Optional
Collapse Derivation Tree:
Collapse References:
oval-def:object
