Documentation for Open Vulnerability and Assessment Language (OVAL®)
Definition Type: Element
Name: tclsh_item
Namespace: http://oval.mitre.org/XMLSchema/oval-system-characteristics-5#ios
Type: oval-sc:ItemType
Containing Schema: ios-system-characteristics-schema.xsd
Abstract
Documentation:
The tclsh item holds information about the availability of tcl on the IOS operating system. It extends the standard ItemType as defined in the oval-system-characteristics schema and one should refer to the ItemType description for more information.

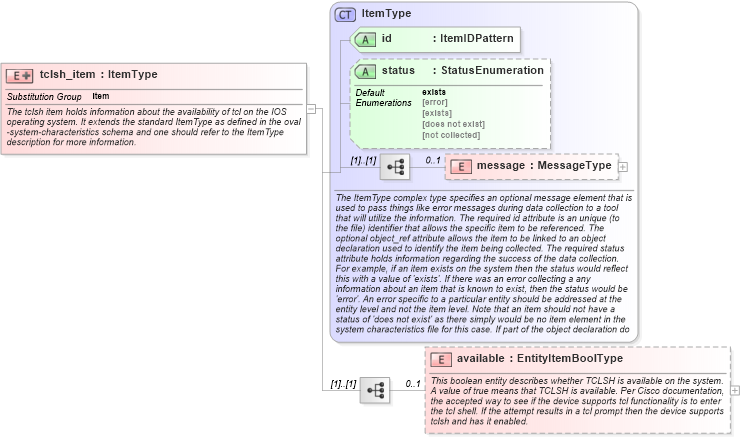

Collapse XSD Schema Diagram:
Drilldown into available in schema ios-system-characteristics-schema_xsd Drilldown into message in schema oval-system-characteristics-schema_xsd Drilldown into status in schema oval-system-characteristics-schema_xsd Drilldown into id in schema oval-system-characteristics-schema_xsd Drilldown into ItemType in schema oval-system-characteristics-schema_xsdXSD Diagram of tclsh_item in schema ios-system-characteristics-schema_xsd (Open Vulnerability and Assessment Language (OVAL®))
Collapse XSD Schema Code:
<xsd:element name="tclsh_item" substitutionGroup="oval-sc:item">
    <xsd:annotation>
        <xsd:documentation>The tclsh item holds information about the availability of tcl on the IOS operating system. It extends the standard ItemType as defined in the oval-system-characteristics schema and one should refer to the ItemType description for more information.</xsd:documentation>
    </xsd:annotation>
    <xsd:complexType>
        <xsd:complexContent>
            <xsd:extension base="oval-sc:ItemType">
                <xsd:sequence>
                    <xsd:element name="available" type="oval-sc:EntityItemBoolType" minOccurs="0" maxOccurs="1">
                        <xsd:annotation>
                            <xsd:documentation>This boolean entity describes whether TCLSH is available on the system. A value of true means that TCLSH is available. Per Cisco documentation, the accepted way to see if the device supports tcl functionality is to enter the tcl shell. If the attempt results in a tcl prompt then the device supports tclsh and has it enabled.</xsd:documentation>
                            <xsd:appinfo>
                                <sch:pattern id="tclshitemavailable" xmlns:sch="http://purl.oclc.org/dsdl/schematron">
                                    <sch:rule context="ios-sc:tclsh_item/ios-sc:available">
                                        <sch:assert test="not(@datatype) or @datatype='boolean'">item <sch:value-of select="../@id" /> - datatype attribute for the available entity of a tclsh_item should be 'boolean'</sch:assert>
                                    </sch:rule>
                                </sch:pattern>
                            </xsd:appinfo>
                        </xsd:annotation>
                    </xsd:element>
                </xsd:sequence>
            </xsd:extension>
        </xsd:complexContent>
    </xsd:complexType>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
message oval-sc:message 0 1
available ios-sc:available 0 1
Collapse Child Attributes:
Name Type Default Value Use
id oval-sc:id Required
status oval-sc:status exists Optional
Collapse Derivation Tree:
Collapse References:
oval-sc:item
