Definition Type: ComplexType
Name: AssertionType
Namespace: urn:oasis:names:tc:SAML:2.0:assertion
Containing Schema: saml-schema-assertion-2.0.xsd
Abstract

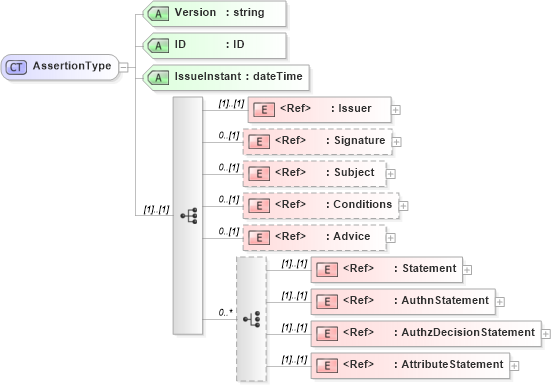

Collapse XSD Schema Diagram:
Drilldown into AttributeStatement in schema saml-schema-assertion-2_0_xsd Drilldown into AuthzDecisionStatement in schema saml-schema-assertion-2_0_xsd Drilldown into AuthnStatement in schema saml-schema-assertion-2_0_xsd Drilldown into Statement in schema saml-schema-assertion-2_0_xsd Drilldown into Advice in schema saml-schema-assertion-2_0_xsd Drilldown into Conditions in schema saml-schema-assertion-2_0_xsd Drilldown into Subject in schema saml-schema-assertion-2_0_xsd Drilldown into in schema Drilldown into Issuer in schema saml-schema-assertion-2_0_xsd Drilldown into IssueInstant in schema saml-schema-assertion-2_0_xsd Drilldown into ID in schema saml-schema-assertion-2_0_xsd Drilldown into Version in schema saml-schema-assertion-2_0_xsdXSD Diagram of AssertionType in schema saml-schema-assertion-2_0_xsd (OASIS Security Services (SAML) TC)
Collapse XSD Schema Code:
<complexType name="AssertionType">
    <sequence>
        <element ref="saml:Issuer" />
        <element ref="ds:Signature" minOccurs="0" />
        <element ref="saml:Subject" minOccurs="0" />
        <element ref="saml:Conditions" minOccurs="0" />
        <element ref="saml:Advice" minOccurs="0" />
        <choice minOccurs="0" maxOccurs="unbounded">
            <element ref="saml:Statement" />
            <element ref="saml:AuthnStatement" />
            <element ref="saml:AuthzDecisionStatement" />
            <element ref="saml:AttributeStatement" />
        </choice>
    </sequence>
    <attribute name="Version" type="string" use="required" />
    <attribute name="ID" type="ID" use="required" />
    <attribute name="IssueInstant" type="dateTime" use="required" />
</complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Issuer saml:Issuer (1) (1)
Signature Unresolved link to signature 0 (1)
Subject saml:Subject 0 (1)
Conditions saml:Conditions 0 (1)
Advice saml:Advice 0 (1)
Statement saml:Statement (1) (1)
AuthnStatement saml:AuthnStatement (1) (1)
AuthzDecisionStatement saml:AuthzDecisionStatement (1) (1)
AttributeStatement saml:AttributeStatement (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
Version saml:Version Required
ID saml:ID Required
IssueInstant saml:IssueInstant Required
Collapse Derivation Tree:
Collapse References:
saml:Assertion
