Definition Type: Element
Name: DebitNote
Namespace: urn:oasis:names:specification:ubl:schema:xsd:DebitNote-2
Type: nsK:DebitNoteType
Containing Schema: UBL-DebitNote-2.0.xsd
Abstract
Documentation:
This element MUST be conveyed as the root element in any instance document based on this Schema expression

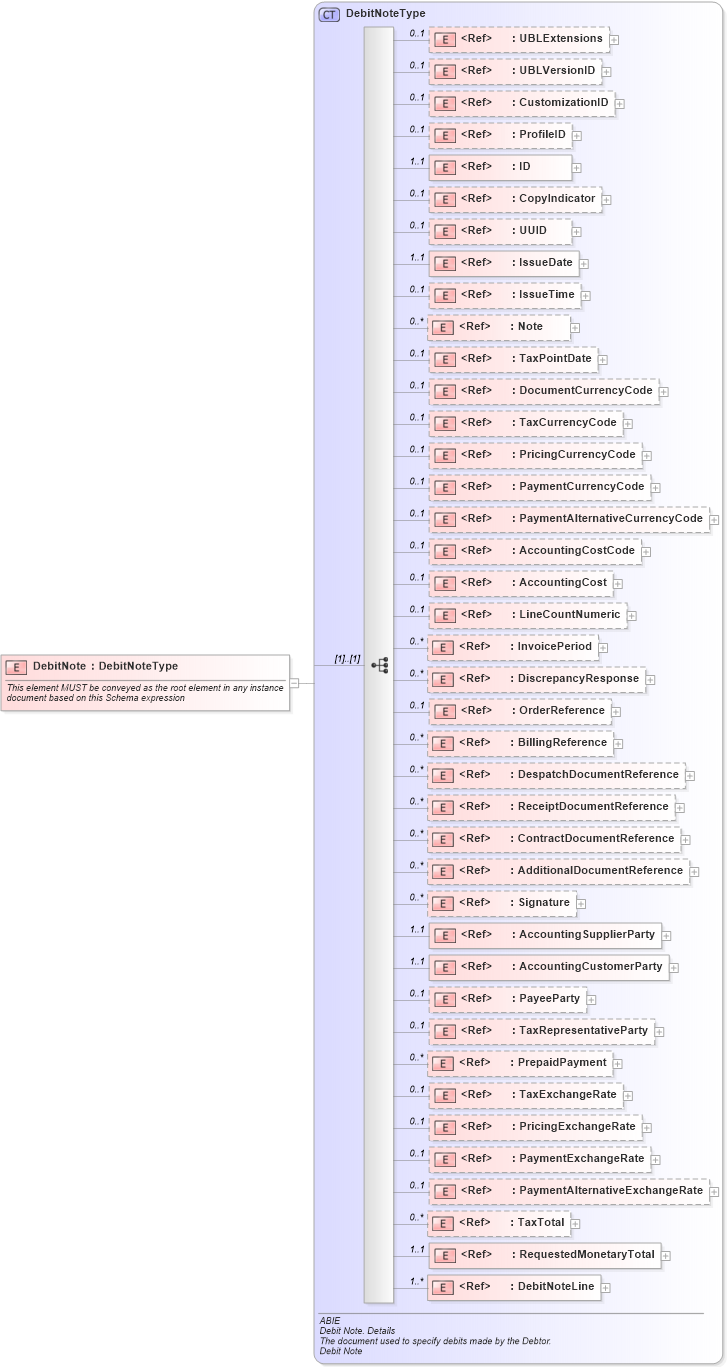

Collapse XSD Schema Diagram:
Drilldown into DebitNoteLine in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into RequestedMonetaryTotal in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into TaxTotal in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into PaymentAlternativeExchangeRate in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into PaymentExchangeRate in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into PricingExchangeRate in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into TaxExchangeRate in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into PrepaidPayment in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into TaxRepresentativeParty in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into PayeeParty in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into AccountingCustomerParty in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into AccountingSupplierParty in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into Signature in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into AdditionalDocumentReference in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into ContractDocumentReference in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into ReceiptDocumentReference in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into DespatchDocumentReference in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into BillingReference in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into OrderReference in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into DiscrepancyResponse in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into InvoicePeriod in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into LineCountNumeric in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into AccountingCost in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into AccountingCostCode in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into PaymentAlternativeCurrencyCode in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into PaymentCurrencyCode in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into PricingCurrencyCode in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into TaxCurrencyCode in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into DocumentCurrencyCode in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into TaxPointDate in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into Note in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into IssueTime in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into IssueDate in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into UUID in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into CopyIndicator in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into ID in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into ProfileID in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into CustomizationID in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into UBLVersionID in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into UBLExtensions in schema ubl-commonextensioncomponents-2_0_xsd Drilldown into DebitNoteType in schema ubl-debitnote-2_0_xsdXSD Diagram of DebitNote in schema ubl-debitnote-2_0_xsd (OASIS Universal Business Language (UBL) TC)
Collapse XSD Schema Code:
<xsd:element name="DebitNote" type="DebitNoteType">
    <xsd:annotation>
        <xsd:documentation>This element MUST be conveyed as the root element in any instance document based on this Schema expression</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
UBLExtensions ext:UBLExtensions 0 1
UBLVersionID cbc:UBLVersionID 0 1
CustomizationID cbc:CustomizationID 0 1
ProfileID cbc:ProfileID 0 1
ID cbc:ID 1 1
CopyIndicator cbc:CopyIndicator 0 1
UUID cbc:UUID 0 1
IssueDate cbc:IssueDate 1 1
IssueTime cbc:IssueTime 0 1
Note cbc:Note 0 unbounded
TaxPointDate cbc:TaxPointDate 0 1
DocumentCurrencyCode cbc:DocumentCurrencyCode 0 1
TaxCurrencyCode cbc:TaxCurrencyCode 0 1
PricingCurrencyCode cbc:PricingCurrencyCode 0 1
PaymentCurrencyCode cbc:PaymentCurrencyCode 0 1
PaymentAlternativeCurrencyCode cbc:PaymentAlternativeCurrencyCode 0 1
AccountingCostCode cbc:AccountingCostCode 0 1
AccountingCost cbc:AccountingCost 0 1
LineCountNumeric cbc:LineCountNumeric 0 1
InvoicePeriod cac:InvoicePeriod 0 unbounded
DiscrepancyResponse cac:DiscrepancyResponse 0 unbounded
OrderReference cac:OrderReference 0 1
BillingReference cac:BillingReference 0 unbounded
DespatchDocumentReference cac:DespatchDocumentReference 0 unbounded
ReceiptDocumentReference cac:ReceiptDocumentReference 0 unbounded
ContractDocumentReference cac:ContractDocumentReference 0 unbounded
AdditionalDocumentReference cac:AdditionalDocumentReference 0 unbounded
Signature cac:Signature 0 unbounded
AccountingSupplierParty cac:AccountingSupplierParty 1 1
AccountingCustomerParty cac:AccountingCustomerParty 1 1
PayeeParty cac:PayeeParty 0 1
TaxRepresentativeParty cac:TaxRepresentativeParty 0 1
PrepaidPayment cac:PrepaidPayment 0 unbounded
TaxExchangeRate cac:TaxExchangeRate 0 1
PricingExchangeRate cac:PricingExchangeRate 0 1
PaymentExchangeRate cac:PaymentExchangeRate 0 1
PaymentAlternativeExchangeRate cac:PaymentAlternativeExchangeRate 0 1
TaxTotal cac:TaxTotal 0 unbounded
RequestedMonetaryTotal cac:RequestedMonetaryTotal 1 1
DebitNoteLine cac:DebitNoteLine 1 unbounded
Collapse Derivation Tree:
