Definition Type: ComplexType
Name: ItemLocationQuantityType
Namespace: urn:oasis:names:specification:ubl:schema:xsd:CommonAggregateComponents-2
Containing Schema: UBL-CommonAggregateComponents-2.0.xsd
Abstract
Documentation:
ABIE Item Location Quantity. Details Information about the properties of an item as they relate to specific quantities and/or specific locations. Item Location Quantity

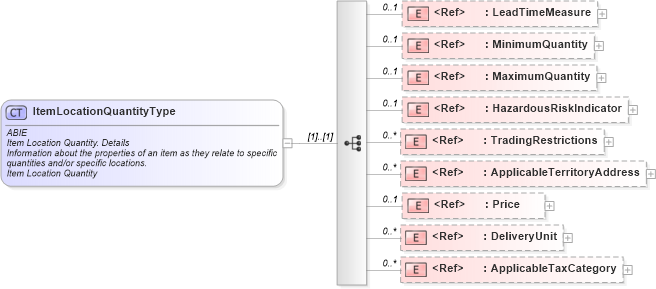

Collapse XSD Schema Diagram:
Drilldown into ApplicableTaxCategory in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into DeliveryUnit in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into Price in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into ApplicableTerritoryAddress in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into TradingRestrictions in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into HazardousRiskIndicator in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into MaximumQuantity in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into MinimumQuantity in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into LeadTimeMeasure in schema ubl-commonbasiccomponents-2_0_xsdXSD Diagram of ItemLocationQuantityType in schema ubl-commonaggregatecomponents-2_0_xsd (OASIS Universal Business Language (UBL) TC)
Collapse XSD Schema Code:
<xsd:complexType name="ItemLocationQuantityType">
    <xsd:annotation>
        <xsd:documentation>
            <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                <ccts:ComponentType>ABIE</ccts:ComponentType>
                <ccts:DictionaryEntryName>Item Location Quantity. Details</ccts:DictionaryEntryName>
                <ccts:Definition>Information about the properties of an item as they relate to specific quantities and/or specific locations.</ccts:Definition>
                <ccts:ObjectClass>Item Location Quantity</ccts:ObjectClass>
            </ccts:Component>
        </xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element ref="cbc:LeadTimeMeasure" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Item Location Quantity. Lead Time. Measure</ccts:DictionaryEntryName>
                        <ccts:Definition>The time taken from the time of order to the time of delivery for an item.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Item Location Quantity</ccts:ObjectClass>
                        <ccts:PropertyTerm>Lead Time</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Measure</ccts:RepresentationTerm>
                        <ccts:DataType>Measure. Type</ccts:DataType>
                        <ccts:Examples>"2 days", "24 hours"</ccts:Examples>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:MinimumQuantity" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Item Location Quantity. Minimum_ Quantity. Quantity</ccts:DictionaryEntryName>
                        <ccts:Definition>The minimum quantity that can be ordered to qualify for a specific price.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Item Location Quantity</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Minimum</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Quantity</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Quantity</ccts:RepresentationTerm>
                        <ccts:DataType>Quantity. Type</ccts:DataType>
                        <ccts:Examples>"10 boxes", "1 carton", "1000 sheets"</ccts:Examples>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:MaximumQuantity" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Item Location Quantity. Maximum_ Quantity. Quantity</ccts:DictionaryEntryName>
                        <ccts:Definition>The maximum quantity that can be ordered to qualify for a specific price.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Item Location Quantity</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Maximum</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Quantity</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Quantity</ccts:RepresentationTerm>
                        <ccts:DataType>Quantity. Type</ccts:DataType>
                        <ccts:Examples>"10 boxes", "1 carton", "1000 sheets"</ccts:Examples>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:HazardousRiskIndicator" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Item Location Quantity. Hazardous Risk_ Indicator. Indicator</ccts:DictionaryEntryName>
                        <ccts:Definition>Indicates whether the item as delivered, in the stated quantity to the stated location, is hazardous.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Item Location Quantity</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Hazardous Risk</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Indicator</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Indicator</ccts:RepresentationTerm>
                        <ccts:DataType>Indicator. Type</ccts:DataType>
                        <ccts:Examples>Default is negative</ccts:Examples>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:TradingRestrictions" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Item Location Quantity. Trading Restrictions. Text</ccts:DictionaryEntryName>
                        <ccts:Definition>A description of trade restrictions that apply to the item or quantities of the item.</ccts:Definition>
                        <ccts:Cardinality>0..n</ccts:Cardinality>
                        <ccts:ObjectClass>Item Location Quantity</ccts:ObjectClass>
                        <ccts:PropertyTerm>Trading Restrictions</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Text</ccts:RepresentationTerm>
                        <ccts:DataType>Text. Type</ccts:DataType>
                        <ccts:Examples>"not for export"</ccts:Examples>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="ApplicableTerritoryAddress" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Item Location Quantity. Applicable Territory_ Address. Address</ccts:DictionaryEntryName>
                        <ccts:Definition>An association to Territory (Address).</ccts:Definition>
                        <ccts:Cardinality>0..n</ccts:Cardinality>
                        <ccts:ObjectClass>Item Location Quantity</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Applicable Territory</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Address</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Address</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="Price" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Item Location Quantity. Price</ccts:DictionaryEntryName>
                        <ccts:Definition>An association to Price.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Item Location Quantity</ccts:ObjectClass>
                        <ccts:PropertyTerm>Price</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Price</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="DeliveryUnit" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Item Location Quantity. Delivery Unit</ccts:DictionaryEntryName>
                        <ccts:Definition>An association to Delivery Unit.</ccts:Definition>
                        <ccts:Cardinality>0..n</ccts:Cardinality>
                        <ccts:ObjectClass>Item Location Quantity</ccts:ObjectClass>
                        <ccts:PropertyTerm>Delivery Unit</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Delivery Unit</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="ApplicableTaxCategory" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Item Location Quantity. Applicable_ Tax Category. Tax Category</ccts:DictionaryEntryName>
                        <ccts:Definition>An association to Tax Category.</ccts:Definition>
                        <ccts:Cardinality>0..n</ccts:Cardinality>
                        <ccts:ObjectClass>Item Location Quantity</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Applicable</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Tax Category</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Tax Category</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
LeadTimeMeasure cbc:LeadTimeMeasure 0 1
MinimumQuantity cbc:MinimumQuantity 0 1
MaximumQuantity cbc:MaximumQuantity 0 1
HazardousRiskIndicator cbc:HazardousRiskIndicator 0 1
TradingRestrictions cbc:TradingRestrictions 0 unbounded
ApplicableTerritoryAddress cac:ApplicableTerritoryAddress 0 unbounded
Price cac:Price 0 1
DeliveryUnit cac:DeliveryUnit 0 unbounded
ApplicableTaxCategory cac:ApplicableTaxCategory 0 unbounded
Collapse Derivation Tree:
Collapse References:
cac:ItemLocationQuantity, cac:OriginalItemLocationQuantity, cac:RequiredItemLocationQuantity
