Definition Type: Element
Name: RequiredItemLocationQuantity
Namespace: urn:oasis:names:specification:ubl:schema:xsd:CommonAggregateComponents-2
Type: cac:ItemLocationQuantityType
Containing Schema: UBL-CommonAggregateComponents-2.0.xsd
Abstract

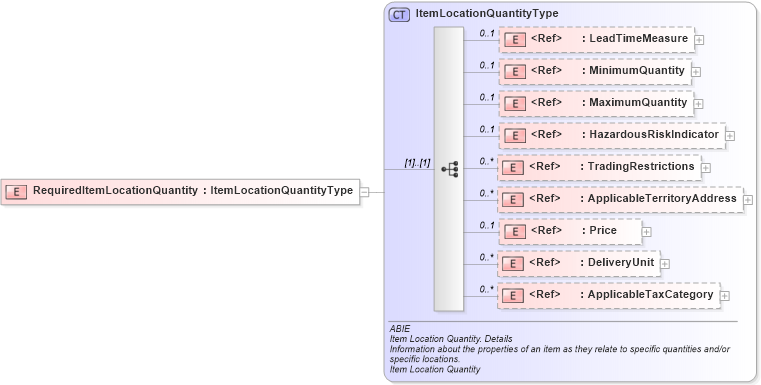

Collapse XSD Schema Diagram:
Drilldown into ApplicableTaxCategory in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into DeliveryUnit in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into Price in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into ApplicableTerritoryAddress in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into TradingRestrictions in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into HazardousRiskIndicator in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into MaximumQuantity in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into MinimumQuantity in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into LeadTimeMeasure in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into ItemLocationQuantityType in schema ubl-commonaggregatecomponents-2_0_xsdXSD Diagram of RequiredItemLocationQuantity in schema ubl-commonaggregatecomponents-2_0_xsd (OASIS Universal Business Language (UBL) TC)
Collapse XSD Schema Code:
<xsd:element name="RequiredItemLocationQuantity" type="ItemLocationQuantityType" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
LeadTimeMeasure cbc:LeadTimeMeasure 0 1
MinimumQuantity cbc:MinimumQuantity 0 1
MaximumQuantity cbc:MaximumQuantity 0 1
HazardousRiskIndicator cbc:HazardousRiskIndicator 0 1
TradingRestrictions cbc:TradingRestrictions 0 unbounded
ApplicableTerritoryAddress cac:ApplicableTerritoryAddress 0 unbounded
Price cac:Price 0 1
DeliveryUnit cac:DeliveryUnit 0 unbounded
ApplicableTaxCategory cac:ApplicableTaxCategory 0 unbounded
Collapse Derivation Tree:
