Documentation for OASIS Universal Business Language (UBL) TC
Definition Type: ComplexType
Name: ItemType
Namespace: urn:oasis:names:specification:ubl:schema:xsd:CommonAggregateComponents-2
Containing Schema: UBL-CommonAggregateComponents-2.0.xsd
Abstract
Documentation:
ABIE Item. Details Information directly relating to an item. Item article, product, goods item

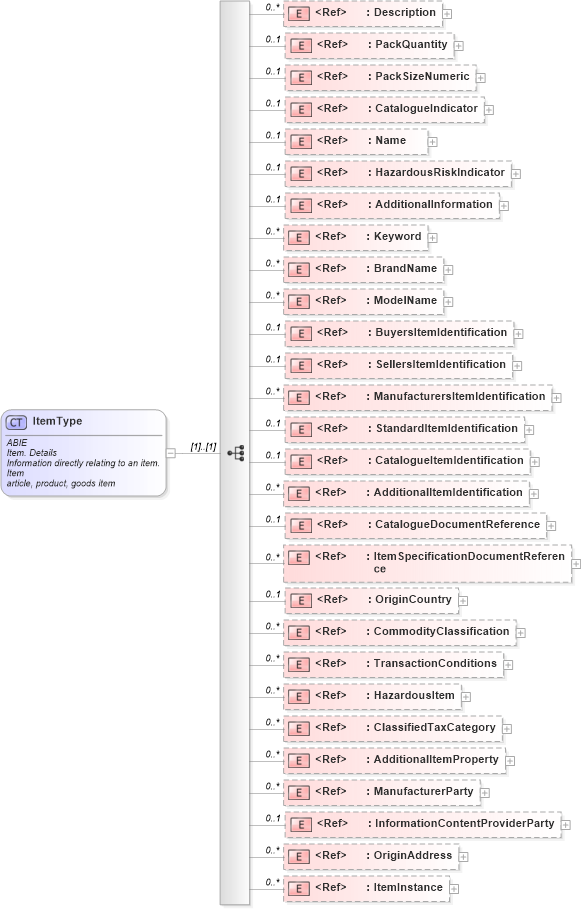

Collapse XSD Schema Diagram:
Drilldown into ItemInstance in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into OriginAddress in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into InformationContentProviderParty in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into ManufacturerParty in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into AdditionalItemProperty in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into ClassifiedTaxCategory in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into HazardousItem in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into TransactionConditions in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into CommodityClassification in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into OriginCountry in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into ItemSpecificationDocumentReference in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into CatalogueDocumentReference in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into AdditionalItemIdentification in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into CatalogueItemIdentification in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into StandardItemIdentification in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into ManufacturersItemIdentification in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into SellersItemIdentification in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into BuyersItemIdentification in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into ModelName in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into BrandName in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into Keyword in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into AdditionalInformation in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into HazardousRiskIndicator in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into Name in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into CatalogueIndicator in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into PackSizeNumeric in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into PackQuantity in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into Description in schema ubl-commonbasiccomponents-2_0_xsdXSD Diagram of ItemType in schema ubl-commonaggregatecomponents-2_0_xsd (OASIS Universal Business Language (UBL) TC)
Collapse XSD Schema Code:
<xsd:complexType name="ItemType">
    <xsd:annotation>
        <xsd:documentation>
            <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                <ccts:ComponentType>ABIE</ccts:ComponentType>
                <ccts:DictionaryEntryName>Item. Details</ccts:DictionaryEntryName>
                <ccts:Definition>Information directly relating to an item.</ccts:Definition>
                <ccts:ObjectClass>Item</ccts:ObjectClass>
                <ccts:AlternativeBusinessTerms>article, product, goods item</ccts:AlternativeBusinessTerms>
            </ccts:Component>
        </xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element ref="cbc:Description" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Item. Description. Text</ccts:DictionaryEntryName>
                        <ccts:Definition>Free-form field that can be used to give a text description of the item.</ccts:Definition>
                        <ccts:Cardinality>0..n</ccts:Cardinality>
                        <ccts:ObjectClass>Item</ccts:ObjectClass>
                        <ccts:PropertyTerm>Description</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Text</ccts:RepresentationTerm>
                        <ccts:DataType>Text. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:PackQuantity" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Item. Pack Quantity. Quantity</ccts:DictionaryEntryName>
                        <ccts:Definition>The unit packaging quantity.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Item</ccts:ObjectClass>
                        <ccts:PropertyTerm>Pack Quantity</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Quantity</ccts:RepresentationTerm>
                        <ccts:DataType>Quantity. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:PackSizeNumeric" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Item. Pack Size. Numeric</ccts:DictionaryEntryName>
                        <ccts:Definition>The number of items in a pack.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Item</ccts:ObjectClass>
                        <ccts:PropertyTerm>Pack Size</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Numeric</ccts:RepresentationTerm>
                        <ccts:DataType>Numeric. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:CatalogueIndicator" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Item. Catalogue_ Indicator. Indicator</ccts:DictionaryEntryName>
                        <ccts:Definition>Indicates whether the item was ordered from a Catalogue (true) or not (false).</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Item</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Catalogue</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Indicator</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Indicator</ccts:RepresentationTerm>
                        <ccts:DataType>Indicator. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:Name" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Item. Name</ccts:DictionaryEntryName>
                        <ccts:Definition>A short name optionally given to an item, such as a name from a Catalogue, as distinct from a description.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Item</ccts:ObjectClass>
                        <ccts:PropertyTerm>Name</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Name</ccts:RepresentationTerm>
                        <ccts:DataType>Name. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:HazardousRiskIndicator" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Item. Hazardous Risk_ Indicator. Indicator</ccts:DictionaryEntryName>
                        <ccts:Definition>Indicates whether the item as delivered is hazardous.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Item</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Hazardous Risk</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Indicator</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Indicator</ccts:RepresentationTerm>
                        <ccts:DataType>Indicator. Type</ccts:DataType>
                        <ccts:Examples>Default is negative</ccts:Examples>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:AdditionalInformation" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Item. Additional_ Information. Text</ccts:DictionaryEntryName>
                        <ccts:Definition>Provides more details of the item (e.g., the URL of a relevant web page).</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Item</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Additional</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Information</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Text</ccts:RepresentationTerm>
                        <ccts:DataType>Text. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:Keyword" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Item. Keyword. Text</ccts:DictionaryEntryName>
                        <ccts:Definition>A Seller Party-defined search string for the item. Also could be synonyms for identifying the item.</ccts:Definition>
                        <ccts:Cardinality>0..n</ccts:Cardinality>
                        <ccts:ObjectClass>Item</ccts:ObjectClass>
                        <ccts:PropertyTerm>Keyword</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Text</ccts:RepresentationTerm>
                        <ccts:DataType>Text. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:BrandName" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Item. Brand Name. Name</ccts:DictionaryEntryName>
                        <ccts:Definition>Brand name for the item.</ccts:Definition>
                        <ccts:Cardinality>0..n</ccts:Cardinality>
                        <ccts:ObjectClass>Item</ccts:ObjectClass>
                        <ccts:PropertyTerm>Brand Name</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Name</ccts:RepresentationTerm>
                        <ccts:DataType>Name. Type</ccts:DataType>
                        <ccts:Examples>Coca-Cola</ccts:Examples>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:ModelName" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Item. Model Name. Name</ccts:DictionaryEntryName>
                        <ccts:Definition>Model name for the item.</ccts:Definition>
                        <ccts:Cardinality>0..n</ccts:Cardinality>
                        <ccts:ObjectClass>Item</ccts:ObjectClass>
                        <ccts:PropertyTerm>Model Name</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Name</ccts:RepresentationTerm>
                        <ccts:DataType>Name. Type</ccts:DataType>
                        <ccts:Examples>"VW Beetle"</ccts:Examples>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="BuyersItemIdentification" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Item. Buyers_ Item Identification. Item Identification</ccts:DictionaryEntryName>
                        <ccts:Definition>Associates the item with its identification according to the buyer's system.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Item</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Buyers</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Item Identification</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Item Identification</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="SellersItemIdentification" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Item. Sellers_ Item Identification. Item Identification</ccts:DictionaryEntryName>
                        <ccts:Definition>Associates the item with its identification according to the seller's system.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Item</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Sellers</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Item Identification</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Item Identification</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="ManufacturersItemIdentification" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Item. Manufacturers_ Item Identification. Item Identification</ccts:DictionaryEntryName>
                        <ccts:Definition>Associates the item with its identification according to the manufacturer's system.</ccts:Definition>
                        <ccts:Cardinality>0..n</ccts:Cardinality>
                        <ccts:ObjectClass>Item</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Manufacturers</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Item Identification</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Item Identification</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="StandardItemIdentification" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Item. Standard_ Item Identification. Item Identification</ccts:DictionaryEntryName>
                        <ccts:Definition>Associates the item with its identification according to a standard system.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Item</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Standard</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Item Identification</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Item Identification</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="CatalogueItemIdentification" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Item. Catalogue_ Item Identification. Item Identification</ccts:DictionaryEntryName>
                        <ccts:Definition>Associates the item with its identification according to a cataloguing system.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Item</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Catalogue</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Item Identification</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Item Identification</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="AdditionalItemIdentification" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Item. Additional_ Item Identification. Item Identification</ccts:DictionaryEntryName>
                        <ccts:Definition>Associates the item with other identification means.</ccts:Definition>
                        <ccts:Cardinality>0..n</ccts:Cardinality>
                        <ccts:ObjectClass>Item</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Additional</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Item Identification</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Item Identification</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="CatalogueDocumentReference" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Item. Catalogue_ Document Reference. Document Reference</ccts:DictionaryEntryName>
                        <ccts:Definition>An associative reference to Catalogue.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Item</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Catalogue</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Document Reference</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Document Reference</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="ItemSpecificationDocumentReference" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Item. Item Specification_ Document Reference. Document Reference</ccts:DictionaryEntryName>
                        <ccts:Definition>An associative reference to a document providing Item specification.</ccts:Definition>
                        <ccts:Cardinality>0..n</ccts:Cardinality>
                        <ccts:ObjectClass>Item</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Item Specification</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Document Reference</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Document Reference</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="OriginCountry" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Item. Origin_ Country. Country</ccts:DictionaryEntryName>
                        <ccts:Definition>Associates the item with its country of origin.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Item</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Origin</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Country</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Country</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="CommodityClassification" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Item. Commodity Classification</ccts:DictionaryEntryName>
                        <ccts:Definition>Associates the item with its classification(s) according to a commodity classifying system.</ccts:Definition>
                        <ccts:Cardinality>0..n</ccts:Cardinality>
                        <ccts:ObjectClass>Item</ccts:ObjectClass>
                        <ccts:PropertyTerm>Commodity Classification</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Commodity Classification</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="TransactionConditions" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Item. Transaction Conditions</ccts:DictionaryEntryName>
                        <ccts:Definition>Associates the item with sales conditions appertaining to it.</ccts:Definition>
                        <ccts:Cardinality>0..n</ccts:Cardinality>
                        <ccts:ObjectClass>Item</ccts:ObjectClass>
                        <ccts:PropertyTerm>Transaction Conditions</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Transaction Conditions</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="HazardousItem" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Item. Hazardous Item</ccts:DictionaryEntryName>
                        <ccts:Definition>Associates the item with its hazardous item information.</ccts:Definition>
                        <ccts:Cardinality>0..n</ccts:Cardinality>
                        <ccts:ObjectClass>Item</ccts:ObjectClass>
                        <ccts:PropertyTerm>Hazardous Item</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Hazardous Item</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="ClassifiedTaxCategory" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Item. Classified_ Tax Category. Tax Category</ccts:DictionaryEntryName>
                        <ccts:Definition>Classifies the item using one or more categories of taxes.</ccts:Definition>
                        <ccts:Cardinality>0..n</ccts:Cardinality>
                        <ccts:ObjectClass>Item</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Classified</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Tax Category</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Tax Category</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="AdditionalItemProperty" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Item. Additional_ Item Property. Item Property</ccts:DictionaryEntryName>
                        <ccts:Definition>Associates the item with a set of additional properties.</ccts:Definition>
                        <ccts:Cardinality>0..n</ccts:Cardinality>
                        <ccts:ObjectClass>Item</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Additional</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Item Property</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Item Property</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="ManufacturerParty" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Item. Manufacturer_ Party. Party</ccts:DictionaryEntryName>
                        <ccts:Definition>Associates the item with its manufacturer.</ccts:Definition>
                        <ccts:Cardinality>0..n</ccts:Cardinality>
                        <ccts:ObjectClass>Item</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Manufacturer</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Party</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Party</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="InformationContentProviderParty" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Item. Information Content Provider_ Party. Party</ccts:DictionaryEntryName>
                        <ccts:Definition>Associates the item with the party responsible for the its specification.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Item</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Information Content Provider</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Party</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Party</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="OriginAddress" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Item. Origin_ Address. Address</ccts:DictionaryEntryName>
                        <ccts:Definition>Associates the item with the region of origin (not the country).</ccts:Definition>
                        <ccts:Cardinality>0..n</ccts:Cardinality>
                        <ccts:ObjectClass>Item</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Origin</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Address</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Address</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="ItemInstance" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Item. Item Instance</ccts:DictionaryEntryName>
                        <ccts:Definition>An association to Item Instance.</ccts:Definition>
                        <ccts:Cardinality>0..n</ccts:Cardinality>
                        <ccts:ObjectClass>Item</ccts:ObjectClass>
                        <ccts:PropertyTerm>Item Instance</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Item Instance</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Description cbc:Description 0 unbounded
PackQuantity cbc:PackQuantity 0 1
PackSizeNumeric cbc:PackSizeNumeric 0 1
CatalogueIndicator cbc:CatalogueIndicator 0 1
Name cbc:Name 0 1
HazardousRiskIndicator cbc:HazardousRiskIndicator 0 1
AdditionalInformation cbc:AdditionalInformation 0 1
Keyword cbc:Keyword 0 unbounded
BrandName cbc:BrandName 0 unbounded
ModelName cbc:ModelName 0 unbounded
BuyersItemIdentification cac:BuyersItemIdentification 0 1
SellersItemIdentification cac:SellersItemIdentification 0 1
ManufacturersItemIdentification cac:ManufacturersItemIdentification 0 unbounded
StandardItemIdentification cac:StandardItemIdentification 0 1
CatalogueItemIdentification cac:CatalogueItemIdentification 0 1
AdditionalItemIdentification cac:AdditionalItemIdentification 0 unbounded
CatalogueDocumentReference cac:CatalogueDocumentReference 0 1
ItemSpecificationDocumentReference cac:ItemSpecificationDocumentReference 0 unbounded
OriginCountry cac:OriginCountry 0 1
CommodityClassification cac:CommodityClassification 0 unbounded
TransactionConditions cac:TransactionConditions 0 unbounded
HazardousItem cac:HazardousItem 0 unbounded
ClassifiedTaxCategory cac:ClassifiedTaxCategory 0 unbounded
AdditionalItemProperty cac:AdditionalItemProperty 0 unbounded
ManufacturerParty cac:ManufacturerParty 0 unbounded
InformationContentProviderParty cac:InformationContentProviderParty 0 1
OriginAddress cac:OriginAddress 0 unbounded
ItemInstance cac:ItemInstance 0 unbounded
Collapse Derivation Tree:
Collapse References:
cac:Item
Documentation for OASIS Universal Business Language (UBL) TC

Generated using Liquid Studio - Developer Bundle 21.0.0.0
