Documentation for OASIS Universal Business Language (UBL) TC
Definition Type: ComplexType
Name: LineItemType
Namespace: urn:oasis:names:specification:ubl:schema:xsd:CommonAggregateComponents-2
Containing Schema: UBL-CommonAggregateComponents-2.0.xsd
Abstract
Documentation:
ABIE Line Item. Details Information about a Line Item. Line Item

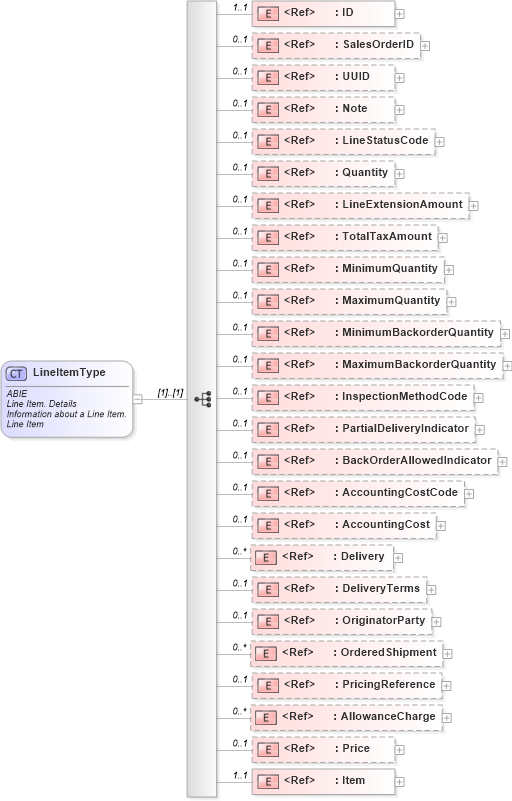

Collapse XSD Schema Diagram:
Drilldown into Item in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into Price in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into AllowanceCharge in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into PricingReference in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into OrderedShipment in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into OriginatorParty in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into DeliveryTerms in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into Delivery in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into AccountingCost in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into AccountingCostCode in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into BackOrderAllowedIndicator in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into PartialDeliveryIndicator in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into InspectionMethodCode in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into MaximumBackorderQuantity in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into MinimumBackorderQuantity in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into MaximumQuantity in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into MinimumQuantity in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into TotalTaxAmount in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into LineExtensionAmount in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into Quantity in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into LineStatusCode in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into Note in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into UUID in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into SalesOrderID in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into ID in schema ubl-commonbasiccomponents-2_0_xsdXSD Diagram of LineItemType in schema ubl-commonaggregatecomponents-2_0_xsd (OASIS Universal Business Language (UBL) TC)
Collapse XSD Schema Code:
<xsd:complexType name="LineItemType">
    <xsd:annotation>
        <xsd:documentation>
            <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                <ccts:ComponentType>ABIE</ccts:ComponentType>
                <ccts:DictionaryEntryName>Line Item. Details</ccts:DictionaryEntryName>
                <ccts:Definition>Information about a Line Item.</ccts:Definition>
                <ccts:ObjectClass>Line Item</ccts:ObjectClass>
            </ccts:Component>
        </xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element ref="cbc:ID" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Line Item. Identifier</ccts:DictionaryEntryName>
                        <ccts:Definition>Identifies the Line Item assigned by the buyer.</ccts:Definition>
                        <ccts:Cardinality>1</ccts:Cardinality>
                        <ccts:ObjectClass>Line Item</ccts:ObjectClass>
                        <ccts:PropertyTerm>Identifier</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Identifier</ccts:RepresentationTerm>
                        <ccts:DataType>Identifier. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:SalesOrderID" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Line Item. Sales_ Order Identifier. Identifier</ccts:DictionaryEntryName>
                        <ccts:Definition>The identification given to a Line by the seller.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Line Item</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Sales</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Order Identifier</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Identifier</ccts:RepresentationTerm>
                        <ccts:DataType>Identifier. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:UUID" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Line Item. UUID. Identifier</ccts:DictionaryEntryName>
                        <ccts:Definition>A universally unique identifier for an instance of this ABIE.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Line Item</ccts:ObjectClass>
                        <ccts:PropertyTerm>UUID</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Identifier</ccts:RepresentationTerm>
                        <ccts:DataType>Identifier. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:Note" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Line Item. Note. Text</ccts:DictionaryEntryName>
                        <ccts:Definition>Free-form text applying to the Line Item. This element may contain notes or any other similar information that is not contained explicitly in another structure.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Line Item</ccts:ObjectClass>
                        <ccts:PropertyTerm>Note</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Text</ccts:RepresentationTerm>
                        <ccts:DataType>Text. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:LineStatusCode" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Line Item. Line Status Code. Code</ccts:DictionaryEntryName>
                        <ccts:Definition>Identifies the status of the Line with respect to its original state.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Line Item</ccts:ObjectClass>
                        <ccts:PropertyTerm>Line Status Code</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Code</ccts:RepresentationTerm>
                        <ccts:DataType>Line Status_ Code. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:Quantity" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Line Item. Quantity</ccts:DictionaryEntryName>
                        <ccts:Definition>The quantity of Items for the Line Item.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Line Item</ccts:ObjectClass>
                        <ccts:PropertyTerm>Quantity</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Quantity</ccts:RepresentationTerm>
                        <ccts:DataType>Quantity. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:LineExtensionAmount" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Line Item. Line Extension Amount. Amount</ccts:DictionaryEntryName>
                        <ccts:Definition>The total amount for the Line Item, including Allowance Charges but net of taxes.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Line Item</ccts:ObjectClass>
                        <ccts:PropertyTerm>Line Extension Amount</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Amount</ccts:RepresentationTerm>
                        <ccts:DataType>Amount. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:TotalTaxAmount" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Line Item. Total_ Tax Amount. Amount</ccts:DictionaryEntryName>
                        <ccts:Definition>The total tax amount for the Line Item.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Line Item</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Total</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Tax Amount</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Amount</ccts:RepresentationTerm>
                        <ccts:DataType>Amount. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:MinimumQuantity" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Line Item. Minimum_ Quantity. Quantity</ccts:DictionaryEntryName>
                        <ccts:Definition>The minimum quantity for the Item on the Line.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Line Item</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Minimum</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Quantity</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Quantity</ccts:RepresentationTerm>
                        <ccts:DataType>Quantity. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:MaximumQuantity" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Line Item. Maximum_ Quantity. Quantity</ccts:DictionaryEntryName>
                        <ccts:Definition>The maximum quantity for the Item on the Line.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Line Item</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Maximum</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Quantity</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Quantity</ccts:RepresentationTerm>
                        <ccts:DataType>Quantity. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:MinimumBackorderQuantity" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Line Item. Minimum_ Backorder. Quantity</ccts:DictionaryEntryName>
                        <ccts:Definition>The minimum back order quantity (where back order is allowed).</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Line Item</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Minimum</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Backorder</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Quantity</ccts:RepresentationTerm>
                        <ccts:DataType>Quantity. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:MaximumBackorderQuantity" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Line Item. Maximum_ Backorder. Quantity</ccts:DictionaryEntryName>
                        <ccts:Definition>The maximum back order quantity (where back order is allowed).</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Line Item</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Maximum</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Backorder</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Quantity</ccts:RepresentationTerm>
                        <ccts:DataType>Quantity. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:InspectionMethodCode" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Line Item. Inspection Method. Code</ccts:DictionaryEntryName>
                        <ccts:Definition>Inspection requirements for a Line Item, expressed as a code.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Line Item</ccts:ObjectClass>
                        <ccts:PropertyTerm>Inspection Method</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Code</ccts:RepresentationTerm>
                        <ccts:DataType>Code. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:PartialDeliveryIndicator" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Line Item. Partial Delivery Indicator. Indicator</ccts:DictionaryEntryName>
                        <ccts:Definition>Indicates whether a partial delivery is allowed.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Line Item</ccts:ObjectClass>
                        <ccts:PropertyTerm>Partial Delivery Indicator</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Indicator</ccts:RepresentationTerm>
                        <ccts:DataType>Indicator. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:BackOrderAllowedIndicator" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Line Item. Back Order Allowed Indicator. Indicator</ccts:DictionaryEntryName>
                        <ccts:Definition>Indicates whether back order is allowed.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Line Item</ccts:ObjectClass>
                        <ccts:PropertyTerm>Back Order Allowed Indicator</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Indicator</ccts:RepresentationTerm>
                        <ccts:DataType>Indicator. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:AccountingCostCode" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Line Item. Accounting Cost Code. Code</ccts:DictionaryEntryName>
                        <ccts:Definition>The buyer's accounting code applied to the Line Item.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Line Item</ccts:ObjectClass>
                        <ccts:PropertyTerm>Accounting Cost Code</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Code</ccts:RepresentationTerm>
                        <ccts:DataType>Code. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:AccountingCost" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Line Item. Accounting Cost. Text</ccts:DictionaryEntryName>
                        <ccts:Definition>The buyer's accounting code applied to the Line Item, expressed as text.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Line Item</ccts:ObjectClass>
                        <ccts:PropertyTerm>Accounting Cost</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Text</ccts:RepresentationTerm>
                        <ccts:DataType>Text. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="Delivery" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Line Item. Delivery</ccts:DictionaryEntryName>
                        <ccts:Definition>An association to Delivery.</ccts:Definition>
                        <ccts:Cardinality>0..n</ccts:Cardinality>
                        <ccts:ObjectClass>Line Item</ccts:ObjectClass>
                        <ccts:PropertyTerm>Delivery</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Delivery</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="DeliveryTerms" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Line Item. Delivery Terms</ccts:DictionaryEntryName>
                        <ccts:Definition>An association to Delivery Terms.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Line Item</ccts:ObjectClass>
                        <ccts:PropertyTerm>Delivery Terms</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Delivery Terms</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="OriginatorParty" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Line Item. Originator_ Party. Party</ccts:DictionaryEntryName>
                        <ccts:Definition>The party who originated Order.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Line Item</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Originator</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Party</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Party</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="OrderedShipment" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Line Item. Ordered Shipment</ccts:DictionaryEntryName>
                        <ccts:Definition>An association to Ordered Shipment.</ccts:Definition>
                        <ccts:Cardinality>0..n</ccts:Cardinality>
                        <ccts:ObjectClass>Line Item</ccts:ObjectClass>
                        <ccts:PropertyTerm>Ordered Shipment</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Ordered Shipment</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="PricingReference" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Line Item. Pricing Reference</ccts:DictionaryEntryName>
                        <ccts:Definition>An association to Pricing Reference.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Line Item</ccts:ObjectClass>
                        <ccts:PropertyTerm>Pricing Reference</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Pricing Reference</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="AllowanceCharge" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Line Item. Allowance Charge</ccts:DictionaryEntryName>
                        <ccts:Definition>An association to Allowance Charge.</ccts:Definition>
                        <ccts:Cardinality>0..n</ccts:Cardinality>
                        <ccts:ObjectClass>Line Item</ccts:ObjectClass>
                        <ccts:PropertyTerm>Allowance Charge</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Allowance Charge</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="Price" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Line Item. Price</ccts:DictionaryEntryName>
                        <ccts:Definition>An association to Price.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Line Item</ccts:ObjectClass>
                        <ccts:PropertyTerm>Price</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Price</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="Item" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Line Item. Item</ccts:DictionaryEntryName>
                        <ccts:Definition>An association to Item.</ccts:Definition>
                        <ccts:Cardinality>1</ccts:Cardinality>
                        <ccts:ObjectClass>Line Item</ccts:ObjectClass>
                        <ccts:PropertyTerm>Item</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Item</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ID cbc:ID 1 1
SalesOrderID cbc:SalesOrderID 0 1
UUID cbc:UUID 0 1
Note cbc:Note 0 1
LineStatusCode cbc:LineStatusCode 0 1
Quantity cbc:Quantity 0 1
LineExtensionAmount cbc:LineExtensionAmount 0 1
TotalTaxAmount cbc:TotalTaxAmount 0 1
MinimumQuantity cbc:MinimumQuantity 0 1
MaximumQuantity cbc:MaximumQuantity 0 1
MinimumBackorderQuantity cbc:MinimumBackorderQuantity 0 1
MaximumBackorderQuantity cbc:MaximumBackorderQuantity 0 1
InspectionMethodCode cbc:InspectionMethodCode 0 1
PartialDeliveryIndicator cbc:PartialDeliveryIndicator 0 1
BackOrderAllowedIndicator cbc:BackOrderAllowedIndicator 0 1
AccountingCostCode cbc:AccountingCostCode 0 1
AccountingCost cbc:AccountingCost 0 1
Delivery cac:Delivery 0 unbounded
DeliveryTerms cac:DeliveryTerms 0 1
OriginatorParty cac:OriginatorParty 0 1
OrderedShipment cac:OrderedShipment 0 unbounded
PricingReference cac:PricingReference 0 1
AllowanceCharge cac:AllowanceCharge 0 unbounded
Price cac:Price 0 1
Item cac:Item 1 1
Collapse Derivation Tree:
Collapse References:
cac:BuyerProposedSubstituteLineItem, cac:LineItem, cac:SellerProposedSubstituteLineItem, cac:SellerSubstitutedLineItem
Documentation for OASIS Universal Business Language (UBL) TC

Generated using Liquid Studio - Developer Bundle 21.0.0.0
