Documentation for OASIS Web Services Distributed Management (WSDM) TC
Definition Type: Element
Name: ManagementEvent
Namespace: http://docs.oasis-open.org/wsdm/2004/12/muws/wsdm-muws-part1.xsd
Type: muws-xs1:ManagementEventType
Containing Schema: wsdm-muws-part1.xsd
Abstract

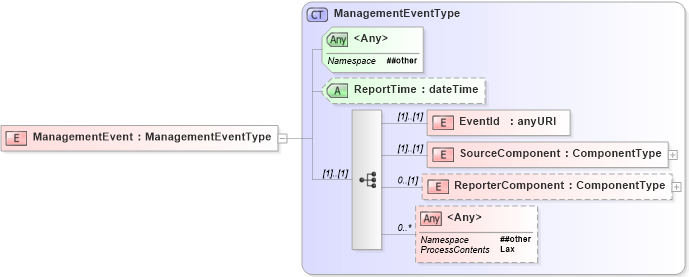

Collapse XSD Schema Diagram:
Drilldown into ReporterComponent in schema wsdm-muws-part1_xsd Drilldown into SourceComponent in schema wsdm-muws-part1_xsd Drilldown into EventId in schema wsdm-muws-part1_xsd Drilldown into ReportTime in schema wsdm-muws-part1_xsd Drilldown into ManagementEventType in schema wsdm-muws-part1_xsdXSD Diagram of ManagementEvent in schema wsdm-muws-part1_xsd (OASIS Web Services Distributed Management (WSDM) TC)
Collapse XSD Schema Code:
<xs:element name="ManagementEvent" type="muws-p1-xs:ManagementEventType" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
EventId muws-xs1:EventId (1) (1)
SourceComponent muws-xs1:SourceComponent (1) (1)
ReporterComponent muws-xs1:ReporterComponent 0 (1)
<xs:any> Allowed namespace: '##other' 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
ReportTime muws-xs1:ReportTime Optional
<anyAttribute> Allowed namespace: '##other'
Collapse Derivation Tree:
