Documentation for OASIS Web Services Distributed Management (WSDM) TC
Definition Type: Element
Name: Situation
Namespace: http://docs.oasis-open.org/wsdm/2004/12/muws/wsdm-muws-part2.xsd
Type: muws-xs2:SituationType
Containing Schema: wsdm-muws-part2.xsd
Abstract

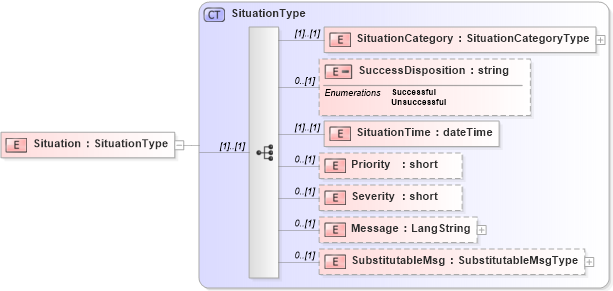

Collapse XSD Schema Diagram:
Drilldown into SubstitutableMsg in schema wsdm-muws-part2_xsd Drilldown into Message in schema wsdm-muws-part2_xsd Drilldown into Severity in schema wsdm-muws-part2_xsd Drilldown into Priority in schema wsdm-muws-part2_xsd Drilldown into SituationTime in schema wsdm-muws-part2_xsd Drilldown into SuccessDisposition in schema wsdm-muws-part2_xsd Drilldown into SituationCategory in schema wsdm-muws-part2_xsd Drilldown into SituationType in schema wsdm-muws-part2_xsdXSD Diagram of Situation in schema wsdm-muws-part2_xsd (OASIS Web Services Distributed Management (WSDM) TC)
Collapse XSD Schema Code:
<xs:element name="Situation" type="muws-p2-xs:SituationType" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
SituationCategory muws-xs2:SituationCategory (1) (1)
SuccessDisposition muws-xs2:SuccessDisposition 0 (1)
SituationTime muws-xs2:SituationTime (1) (1)
Priority muws-xs2:Priority 0 (1)
Severity muws-xs2:Severity 0 (1)
Message muws-xs2:Message 0 (1)
SubstitutableMsg muws-xs2:SubstitutableMsg 0 (1)
Collapse Derivation Tree:
