Documentation for OASIS Web Services Distributed Management (WSDM) TC
Definition Type: ComplexType
Name: SituationType
Namespace: http://docs.oasis-open.org/wsdm/2004/12/muws/wsdm-muws-part2.xsd
Containing Schema: wsdm-muws-part2.xsd
Abstract

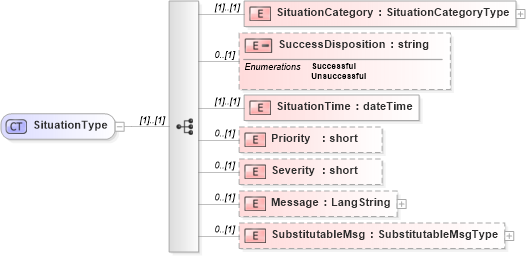

Collapse XSD Schema Diagram:
Drilldown into SubstitutableMsg in schema wsdm-muws-part2_xsd Drilldown into Message in schema wsdm-muws-part2_xsd Drilldown into Severity in schema wsdm-muws-part2_xsd Drilldown into Priority in schema wsdm-muws-part2_xsd Drilldown into SituationTime in schema wsdm-muws-part2_xsd Drilldown into SuccessDisposition in schema wsdm-muws-part2_xsd Drilldown into SituationCategory in schema wsdm-muws-part2_xsdXSD Diagram of SituationType in schema wsdm-muws-part2_xsd (OASIS Web Services Distributed Management (WSDM) TC)
Collapse XSD Schema Code:
<xs:complexType name="SituationType">
    <xs:sequence>
        <xs:element name="SituationCategory" type="muws-p2-xs:SituationCategoryType" />
        <xs:element name="SuccessDisposition" minOccurs="0">
            <xs:simpleType>
                <xs:restriction base="xs:string">
                    <xs:enumeration value="Successful" />
                    <xs:enumeration value="Unsuccessful" />
                </xs:restriction>
            </xs:simpleType>
        </xs:element>
        <xs:element name="SituationTime" type="xs:dateTime" />
        <xs:element name="Priority" type="xs:short" minOccurs="0" />
        <xs:element name="Severity" type="xs:short" minOccurs="0" />
        <xs:element name="Message" type="muws-p2-xs:LangString" minOccurs="0" />
        <xs:element name="SubstitutableMsg" type="muws-p2-xs:SubstitutableMsgType" minOccurs="0" />
    </xs:sequence>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
SituationCategory muws-xs2:SituationCategory (1) (1)
SuccessDisposition muws-xs2:SuccessDisposition 0 (1)
SituationTime muws-xs2:SituationTime (1) (1)
Priority muws-xs2:Priority 0 (1)
Severity muws-xs2:Severity 0 (1)
Message muws-xs2:Message 0 (1)
SubstitutableMsg muws-xs2:SubstitutableMsg 0 (1)
Collapse Derivation Tree:
Collapse References:
muws-xs2:Situation
