Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: Element
Name: alg
Namespace: http://schemas.openxmlformats.org/drawingml/2006/diagram
Type: nsC:CT_Algorithm
Containing Schema: dml-diagramDefinition.xsd
MinOccurs 0
MaxOccurs 1
Abstract
Documentation:
Algorithm
Collapse XSD Schema Diagram:

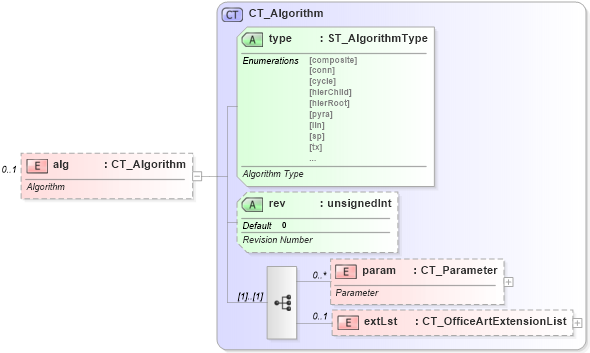

Drilldown into extLst in schema dml-diagramdefinition_xsd Drilldown into param in schema dml-diagramdefinition_xsd Drilldown into rev in schema dml-diagramdefinition_xsd Drilldown into type in schema dml-diagramdefinition_xsd Drilldown into CT_Algorithm in schema dml-diagramdefinition_xsdXSD Diagram of alg in schema dml-diagramdefinition_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:element name="alg" type="CT_Algorithm" minOccurs="0" maxOccurs="1">
    <xsd:annotation>
        <xsd:documentation>Algorithm</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
param nsC:param 0 unbounded
extLst nsC:extLst 0 1
Collapse Child Attributes:
Name Type Default Value Use
type nsC:type Required
rev nsC:rev 0 Optional
Collapse Derivation Tree:
