Definition Type: ComplexType
Name: CT_Algorithm
Namespace: http://schemas.openxmlformats.org/drawingml/2006/diagram
Containing Schema: dml-diagramDefinition.xsd
Abstract
Collapse XSD Schema Diagram:

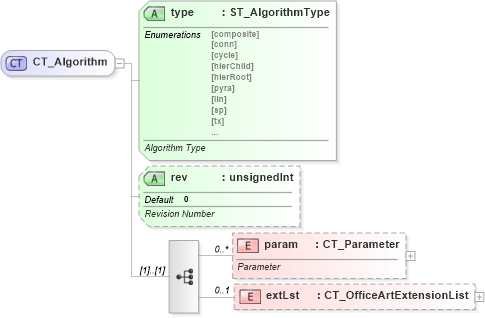

Drilldown into extLst in schema dml-diagramdefinition_xsd Drilldown into param in schema dml-diagramdefinition_xsd Drilldown into rev in schema dml-diagramdefinition_xsd Drilldown into type in schema dml-diagramdefinition_xsdXSD Diagram of CT_Algorithm in schema dml-diagramdefinition_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_Algorithm">
    <xsd:sequence>
        <xsd:element name="param" type="CT_Parameter" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>Parameter</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="extLst" type="a:CT_OfficeArtExtensionList" minOccurs="0" maxOccurs="1" />
    </xsd:sequence>
    <xsd:attribute name="type" type="ST_AlgorithmType" use="required">
        <xsd:annotation>
            <xsd:documentation>Algorithm Type</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="rev" type="xsd:unsignedInt" use="optional" default="0">
        <xsd:annotation>
            <xsd:documentation>Revision Number</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
param nsC:param 0 unbounded
extLst nsC:extLst 0 1
Collapse Child Attributes:
Name Type Default Value Use
type nsC:type Required
rev nsC:rev 0 Optional
Collapse Derivation Tree:
Collapse References:
nsC:alg, nsC:alg, nsC:alg, nsC:alg
