Definition Type: Element
Name: anchor
Namespace: http://schemas.openxmlformats.org/drawingml/2006/wordprocessingDrawing
Type: wp:CT_Anchor
Containing Schema: dml-wordprocessingDrawing.xsd
Abstract
Documentation:
Anchor for Floating DrawingML Object

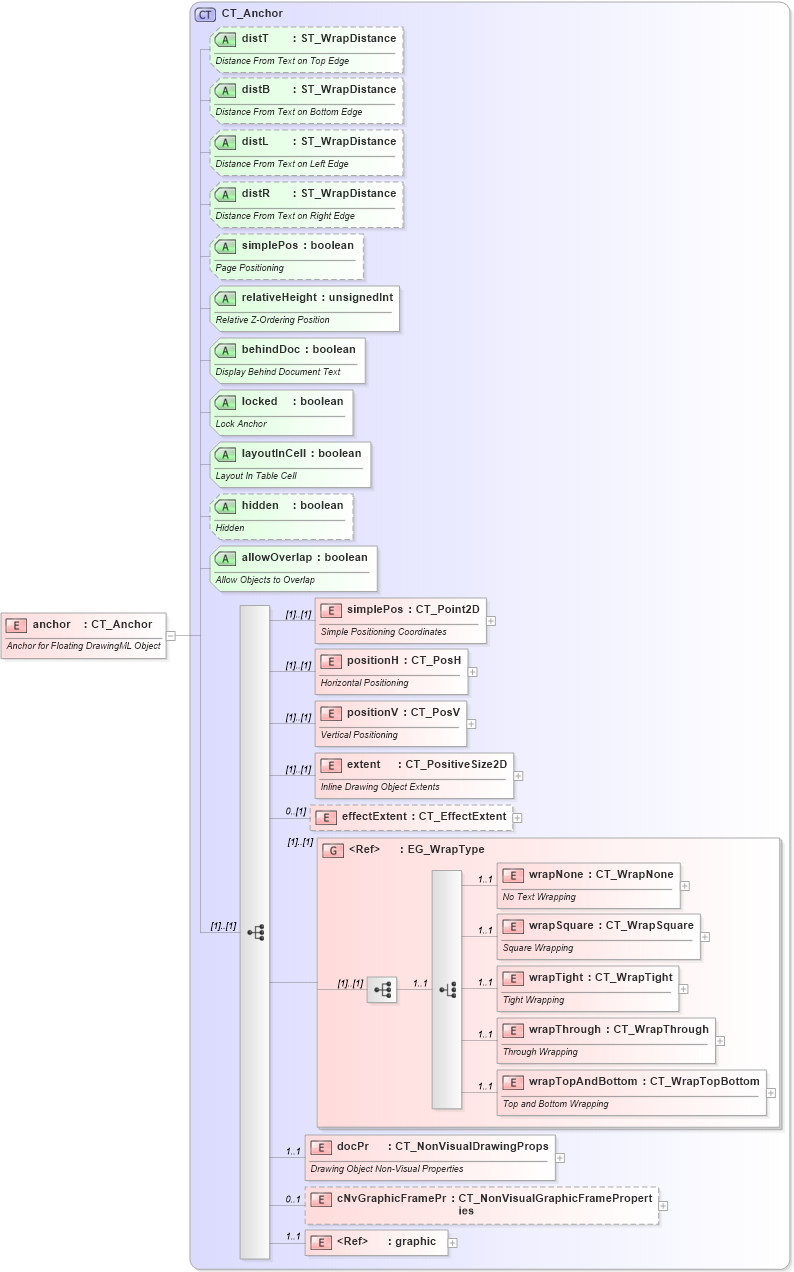

Collapse XSD Schema Diagram:
Drilldown into graphic in schema dml-graphicalobject_xsd Drilldown into cNvGraphicFramePr in schema dml-wordprocessingdrawing_xsd Drilldown into docPr in schema dml-wordprocessingdrawing_xsd Drilldown into wrapTopAndBottom in schema dml-wordprocessingdrawing_xsd Drilldown into wrapThrough in schema dml-wordprocessingdrawing_xsd Drilldown into wrapTight in schema dml-wordprocessingdrawing_xsd Drilldown into wrapSquare in schema dml-wordprocessingdrawing_xsd Drilldown into wrapNone in schema dml-wordprocessingdrawing_xsd Drilldown into EG_WrapType in schema dml-wordprocessingdrawing_xsd Drilldown into effectExtent in schema dml-wordprocessingdrawing_xsd Drilldown into extent in schema dml-wordprocessingdrawing_xsd Drilldown into positionV in schema dml-wordprocessingdrawing_xsd Drilldown into positionH in schema dml-wordprocessingdrawing_xsd Drilldown into simplePos in schema dml-wordprocessingdrawing_xsd Drilldown into allowOverlap in schema dml-wordprocessingdrawing_xsd Drilldown into hidden in schema dml-wordprocessingdrawing_xsd Drilldown into layoutInCell in schema dml-wordprocessingdrawing_xsd Drilldown into locked in schema dml-wordprocessingdrawing_xsd Drilldown into behindDoc in schema dml-wordprocessingdrawing_xsd Drilldown into relativeHeight in schema dml-wordprocessingdrawing_xsd Drilldown into simplePos in schema dml-wordprocessingdrawing_xsd Drilldown into distR in schema dml-wordprocessingdrawing_xsd Drilldown into distL in schema dml-wordprocessingdrawing_xsd Drilldown into distB in schema dml-wordprocessingdrawing_xsd Drilldown into distT in schema dml-wordprocessingdrawing_xsd Drilldown into CT_Anchor in schema dml-wordprocessingdrawing_xsdXSD Diagram of anchor in schema dml-wordprocessingdrawing_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:element name="anchor" type="CT_Anchor">
    <xsd:annotation>
        <xsd:documentation>Anchor for Floating DrawingML Object</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
simplePos wp:simplePos (1) (1)
positionH wp:positionH (1) (1)
positionV wp:positionV (1) (1)
extent wp:extent (1) (1)
effectExtent wp:effectExtent 0 (1)
wrapNone wp:wrapNone 1 1
wrapSquare wp:wrapSquare 1 1
wrapTight wp:wrapTight 1 1
wrapThrough wp:wrapThrough 1 1
wrapTopAndBottom wp:wrapTopAndBottom 1 1
docPr wp:docPr 1 1
cNvGraphicFramePr wp:cNvGraphicFramePr 0 1
graphic a:graphic 1 1
<xs:group> wp:EG_WrapType (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
distT wp:distT Optional
distB wp:distB Optional
distL wp:distL Optional
distR wp:distR Optional
simplePos wp:simplePos (Optional)
relativeHeight wp:relativeHeight Required
behindDoc wp:behindDoc Required
locked wp:locked Required
layoutInCell wp:layoutInCell Required
hidden wp:hidden Optional
allowOverlap wp:allowOverlap Required
Collapse Derivation Tree:
