Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: Element
Name: border
Namespace: http://schemas.openxmlformats.org/spreadsheetml/2006/main
Type: nsM:CT_Border
Containing Schema: sml-styles.xsd
MinOccurs 0
MaxOccurs 1
Abstract
Documentation:
Border Properties

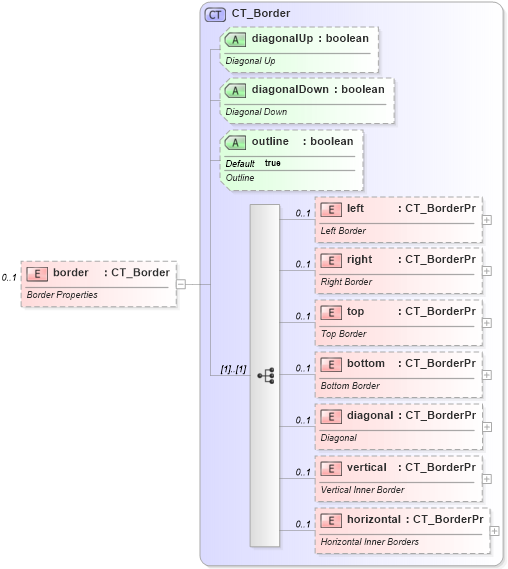

Collapse XSD Schema Diagram:
Drilldown into horizontal in schema sml-styles_xsd Drilldown into vertical in schema sml-styles_xsd Drilldown into diagonal in schema sml-styles_xsd Drilldown into bottom in schema sml-styles_xsd Drilldown into top in schema sml-styles_xsd Drilldown into right in schema sml-styles_xsd Drilldown into left in schema sml-styles_xsd Drilldown into outline in schema sml-styles_xsd Drilldown into diagonalDown in schema sml-styles_xsd Drilldown into diagonalUp in schema sml-styles_xsd Drilldown into CT_Border in schema sml-styles_xsdXSD Diagram of border in schema sml-styles_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:element name="border" type="CT_Border" minOccurs="0" maxOccurs="1">
    <xsd:annotation>
        <xsd:documentation>Border Properties</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
left nsM:left 0 1
right nsM:right 0 1
top nsM:top 0 1
bottom nsM:bottom 0 1
diagonal nsM:diagonal 0 1
vertical nsM:vertical 0 1
horizontal nsM:horizontal 0 1
Collapse Child Attributes:
Name Type Default Value Use
diagonalUp nsM:diagonalUp Optional
diagonalDown nsM:diagonalDown Optional
outline nsM:outline true Optional
Collapse Derivation Tree:
