Definition Type: ComplexType
Name: CT_Border
Namespace: http://schemas.openxmlformats.org/spreadsheetml/2006/main
Containing Schema: sml-styles.xsd
Abstract
Collapse XSD Schema Diagram:

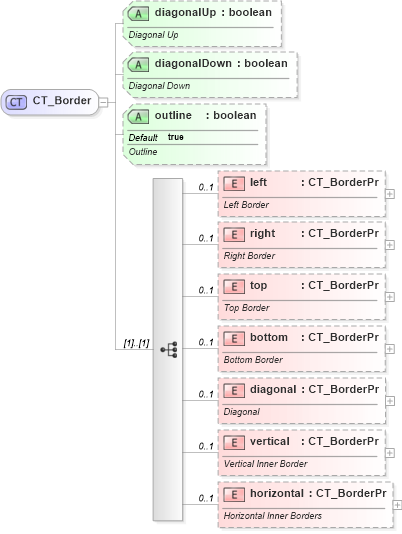

Drilldown into horizontal in schema sml-styles_xsd Drilldown into vertical in schema sml-styles_xsd Drilldown into diagonal in schema sml-styles_xsd Drilldown into bottom in schema sml-styles_xsd Drilldown into top in schema sml-styles_xsd Drilldown into right in schema sml-styles_xsd Drilldown into left in schema sml-styles_xsd Drilldown into outline in schema sml-styles_xsd Drilldown into diagonalDown in schema sml-styles_xsd Drilldown into diagonalUp in schema sml-styles_xsdXSD Diagram of CT_Border in schema sml-styles_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_Border">
    <xsd:sequence>
        <xsd:element name="left" type="CT_BorderPr" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Left Border</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="right" type="CT_BorderPr" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Right Border</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="top" type="CT_BorderPr" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Top Border</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="bottom" type="CT_BorderPr" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Bottom Border</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="diagonal" type="CT_BorderPr" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Diagonal</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="vertical" type="CT_BorderPr" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Vertical Inner Border</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="horizontal" type="CT_BorderPr" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Horizontal Inner Borders</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
    <xsd:attribute name="diagonalUp" type="xsd:boolean" use="optional">
        <xsd:annotation>
            <xsd:documentation>Diagonal Up</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="diagonalDown" type="xsd:boolean" use="optional">
        <xsd:annotation>
            <xsd:documentation>Diagonal Down</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="outline" type="xsd:boolean" use="optional" default="true">
        <xsd:annotation>
            <xsd:documentation>Outline</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
left nsM:left 0 1
right nsM:right 0 1
top nsM:top 0 1
bottom nsM:bottom 0 1
diagonal nsM:diagonal 0 1
vertical nsM:vertical 0 1
horizontal nsM:horizontal 0 1
Collapse Child Attributes:
Name Type Default Value Use
diagonalUp nsM:diagonalUp Optional
diagonalDown nsM:diagonalDown Optional
outline nsM:outline true Optional
Collapse Derivation Tree:
Collapse References:
nsM:border, nsM:border
