Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: Element
Name: boxPr
Namespace: http://schemas.openxmlformats.org/officeDocument/2006/math
Type: m:CT_BoxPr
Containing Schema: shared-math.xsd
MinOccurs 0
MaxOccurs (1)
Abstract
Documentation:
Box Properties

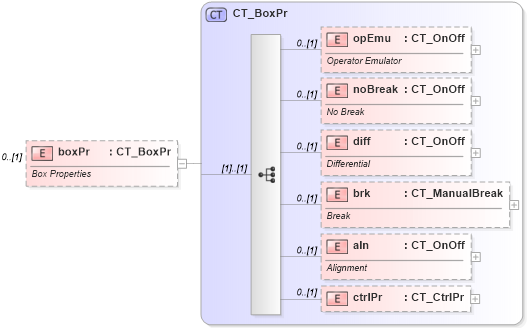

Collapse XSD Schema Diagram:
Drilldown into ctrlPr in schema shared-math_xsd Drilldown into aln in schema shared-math_xsd Drilldown into brk in schema shared-math_xsd Drilldown into diff in schema shared-math_xsd Drilldown into noBreak in schema shared-math_xsd Drilldown into opEmu in schema shared-math_xsd Drilldown into CT_BoxPr in schema shared-math_xsdXSD Diagram of boxPr in schema shared-math_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:element name="boxPr" type="CT_BoxPr" minOccurs="0">
    <xsd:annotation>
        <xsd:documentation>Box Properties</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
opEmu m:opEmu 0 (1)
noBreak m:noBreak 0 (1)
diff m:diff 0 (1)
brk m:brk 0 (1)
aln m:aln 0 (1)
ctrlPr m:ctrlPr 0 (1)
Collapse Derivation Tree:
