Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: ComplexType
Name: CT_BoxPr
Namespace: http://schemas.openxmlformats.org/officeDocument/2006/math
Containing Schema: shared-math.xsd
Abstract
Collapse XSD Schema Diagram:

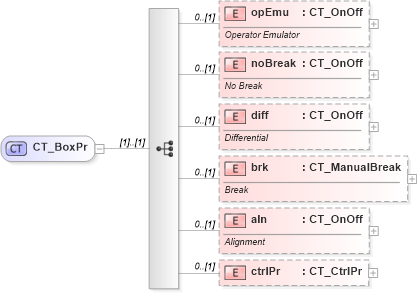

Drilldown into ctrlPr in schema shared-math_xsd Drilldown into aln in schema shared-math_xsd Drilldown into brk in schema shared-math_xsd Drilldown into diff in schema shared-math_xsd Drilldown into noBreak in schema shared-math_xsd Drilldown into opEmu in schema shared-math_xsdXSD Diagram of CT_BoxPr in schema shared-math_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_BoxPr">
    <xsd:sequence>
        <xsd:element name="opEmu" type="CT_OnOff" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation>Operator Emulator</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="noBreak" type="CT_OnOff" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation>No Break</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="diff" type="CT_OnOff" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation>Differential</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="brk" type="CT_ManualBreak" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation>Break</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="aln" type="CT_OnOff" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation>Alignment</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="ctrlPr" type="CT_CtrlPr" minOccurs="0">
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
opEmu m:opEmu 0 (1)
noBreak m:noBreak 0 (1)
diff m:diff 0 (1)
brk m:brk 0 (1)
aln m:aln 0 (1)
ctrlPr m:ctrlPr 0 (1)
Collapse Derivation Tree:
Collapse References:
m:boxPr
