Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: Element
Name: calculatedMember
Namespace: http://schemas.openxmlformats.org/spreadsheetml/2006/main
Type: nsM:CT_CalculatedMember
Containing Schema: sml-pivotTable.xsd
MinOccurs (1)
MaxOccurs unbounded
Abstract
Documentation:
Calculated Member

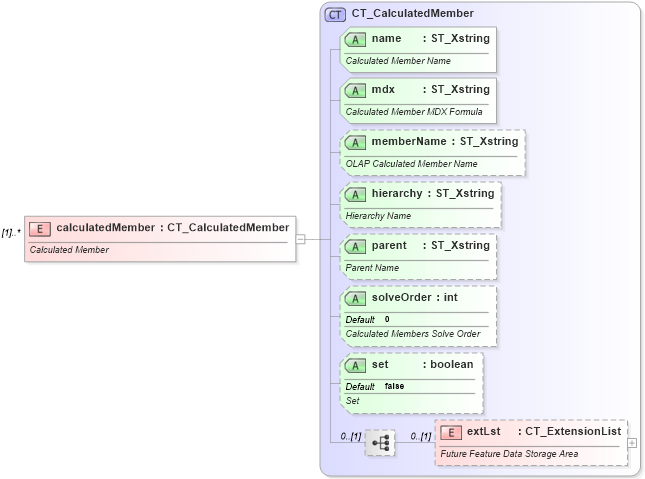

Collapse XSD Schema Diagram:
Drilldown into extLst in schema sml-pivottable_xsd Drilldown into set in schema sml-pivottable_xsd Drilldown into solveOrder in schema sml-pivottable_xsd Drilldown into parent in schema sml-pivottable_xsd Drilldown into hierarchy in schema sml-pivottable_xsd Drilldown into memberName in schema sml-pivottable_xsd Drilldown into mdx in schema sml-pivottable_xsd Drilldown into name in schema sml-pivottable_xsd Drilldown into CT_CalculatedMember in schema sml-pivottable_xsdXSD Diagram of calculatedMember in schema sml-pivottable_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:element name="calculatedMember" maxOccurs="unbounded" type="CT_CalculatedMember">
    <xsd:annotation>
        <xsd:documentation>Calculated Member</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
extLst nsM:extLst 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
name nsM:name Required
mdx nsM:mdx Required
memberName nsM:memberName (Optional)
hierarchy nsM:hierarchy (Optional)
parent nsM:parent (Optional)
solveOrder nsM:solveOrder 0 (Optional)
set nsM:set false (Optional)
Collapse Derivation Tree:
