Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: ComplexType
Name: CT_CalculatedMember
Namespace: http://schemas.openxmlformats.org/spreadsheetml/2006/main
Containing Schema: sml-pivotTable.xsd
Abstract

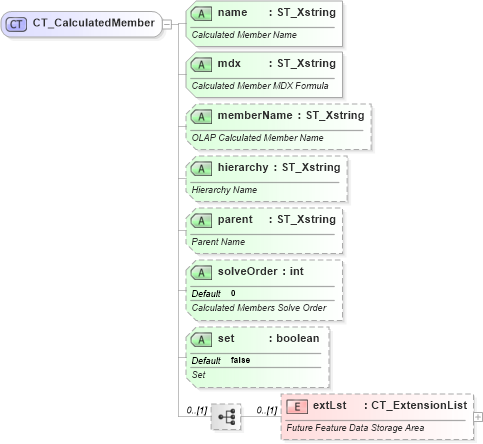

Collapse XSD Schema Diagram:
Drilldown into extLst in schema sml-pivottable_xsd Drilldown into set in schema sml-pivottable_xsd Drilldown into solveOrder in schema sml-pivottable_xsd Drilldown into parent in schema sml-pivottable_xsd Drilldown into hierarchy in schema sml-pivottable_xsd Drilldown into memberName in schema sml-pivottable_xsd Drilldown into mdx in schema sml-pivottable_xsd Drilldown into name in schema sml-pivottable_xsdXSD Diagram of CT_CalculatedMember in schema sml-pivottable_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_CalculatedMember">
    <xsd:sequence minOccurs="0">
        <xsd:element name="extLst" minOccurs="0" type="CT_ExtensionList">
            <xsd:annotation>
                <xsd:documentation>Future Feature Data Storage Area</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
    <xsd:attribute name="name" use="required" type="ST_Xstring">
        <xsd:annotation>
            <xsd:documentation>Calculated Member Name</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="mdx" use="required" type="ST_Xstring">
        <xsd:annotation>
            <xsd:documentation>Calculated Member MDX Formula</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="memberName" type="ST_Xstring">
        <xsd:annotation>
            <xsd:documentation>OLAP Calculated Member Name</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="hierarchy" type="ST_Xstring">
        <xsd:annotation>
            <xsd:documentation>Hierarchy Name</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="parent" type="ST_Xstring">
        <xsd:annotation>
            <xsd:documentation>Parent Name</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="solveOrder" type="xsd:int" default="0">
        <xsd:annotation>
            <xsd:documentation>Calculated Members Solve Order</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="set" type="xsd:boolean" default="false">
        <xsd:annotation>
            <xsd:documentation>Set</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
extLst nsM:extLst 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
name nsM:name Required
mdx nsM:mdx Required
memberName nsM:memberName (Optional)
hierarchy nsM:hierarchy (Optional)
parent nsM:parent (Optional)
solveOrder nsM:solveOrder 0 (Optional)
set nsM:set false (Optional)
Collapse Derivation Tree:
Collapse References:
nsM:calculatedMember
