Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: Element
Name: cell
Namespace: http://schemas.openxmlformats.org/spreadsheetml/2006/main
Type: nsM:CT_ExternalCell
Containing Schema: sml-supplementaryWorkbooks.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract
Documentation:
External Cell Data
Collapse XSD Schema Diagram:

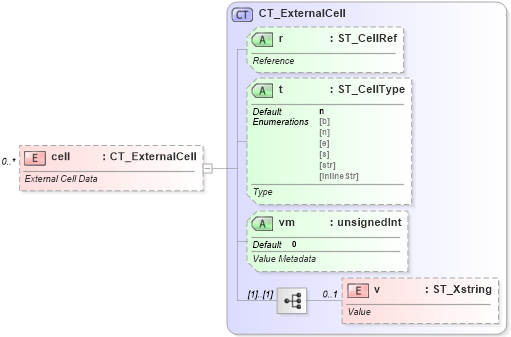

Drilldown into v in schema sml-supplementaryworkbooks_xsd Drilldown into vm in schema sml-supplementaryworkbooks_xsd Drilldown into t in schema sml-supplementaryworkbooks_xsd Drilldown into r in schema sml-supplementaryworkbooks_xsd Drilldown into CT_ExternalCell in schema sml-supplementaryworkbooks_xsdXSD Diagram of cell in schema sml-supplementaryworkbooks_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:element name="cell" type="CT_ExternalCell" minOccurs="0" maxOccurs="unbounded">
    <xsd:annotation>
        <xsd:documentation>External Cell Data</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
v nsM:v 0 1
Collapse Child Attributes:
Name Type Default Value Use
r nsM:r Optional
t nsM:t n Optional
vm nsM:vm 0 Optional
Collapse Derivation Tree:
