Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: ComplexType
Name: CT_ExternalCell
Namespace: http://schemas.openxmlformats.org/spreadsheetml/2006/main
Containing Schema: sml-supplementaryWorkbooks.xsd
Abstract

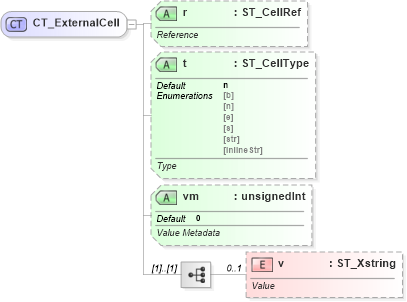

Collapse XSD Schema Diagram:
Drilldown into v in schema sml-supplementaryworkbooks_xsd Drilldown into vm in schema sml-supplementaryworkbooks_xsd Drilldown into t in schema sml-supplementaryworkbooks_xsd Drilldown into r in schema sml-supplementaryworkbooks_xsdXSD Diagram of CT_ExternalCell in schema sml-supplementaryworkbooks_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_ExternalCell">
    <xsd:sequence>
        <xsd:element name="v" type="ST_Xstring" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Value</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
    <xsd:attribute name="r" type="ST_CellRef" use="optional">
        <xsd:annotation>
            <xsd:documentation>Reference</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="t" type="ST_CellType" use="optional" default="n">
        <xsd:annotation>
            <xsd:documentation>Type</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="vm" type="xsd:unsignedInt" use="optional" default="0">
        <xsd:annotation>
            <xsd:documentation>Value Metadata</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
v nsM:v 0 1
Collapse Child Attributes:
Name Type Default Value Use
r nsM:r Optional
t nsM:t n Optional
vm nsM:vm 0 Optional
Collapse Derivation Tree:
Collapse References:
nsM:cell
