Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: Element
Name: conditionalFormat
Namespace: http://schemas.openxmlformats.org/spreadsheetml/2006/main
Type: nsM:CT_ConditionalFormat
Containing Schema: sml-pivotTable.xsd
MinOccurs (1)
MaxOccurs unbounded
Abstract
Documentation:
Conditional Formatting

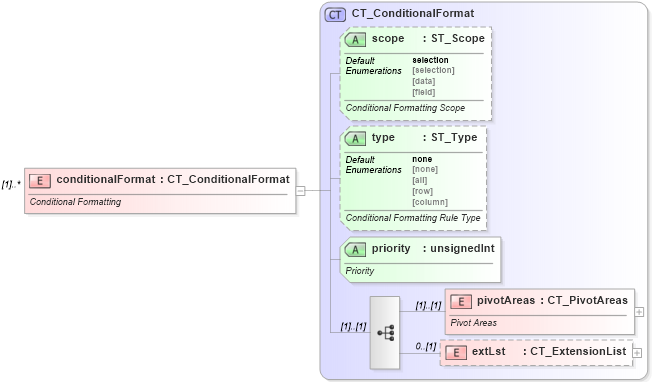

Collapse XSD Schema Diagram:
Drilldown into extLst in schema sml-pivottable_xsd Drilldown into pivotAreas in schema sml-pivottable_xsd Drilldown into priority in schema sml-pivottable_xsd Drilldown into type in schema sml-pivottable_xsd Drilldown into scope in schema sml-pivottable_xsd Drilldown into CT_ConditionalFormat in schema sml-pivottable_xsdXSD Diagram of conditionalFormat in schema sml-pivottable_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:element name="conditionalFormat" maxOccurs="unbounded" type="CT_ConditionalFormat">
    <xsd:annotation>
        <xsd:documentation>Conditional Formatting</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
pivotAreas nsM:pivotAreas (1) (1)
extLst nsM:extLst 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
scope nsM:scope selection (Optional)
type nsM:type none (Optional)
priority nsM:priority Required
Collapse Derivation Tree:
