Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: ComplexType
Name: CT_ConditionalFormat
Namespace: http://schemas.openxmlformats.org/spreadsheetml/2006/main
Containing Schema: sml-pivotTable.xsd
Abstract

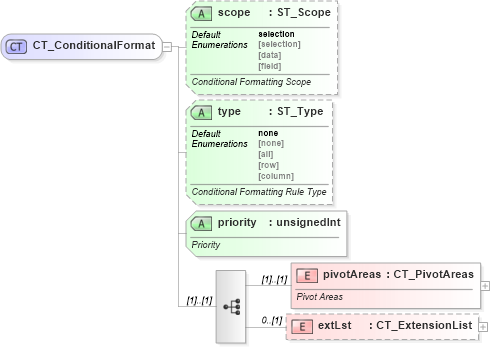

Collapse XSD Schema Diagram:
Drilldown into extLst in schema sml-pivottable_xsd Drilldown into pivotAreas in schema sml-pivottable_xsd Drilldown into priority in schema sml-pivottable_xsd Drilldown into type in schema sml-pivottable_xsd Drilldown into scope in schema sml-pivottable_xsdXSD Diagram of CT_ConditionalFormat in schema sml-pivottable_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_ConditionalFormat">
    <xsd:sequence>
        <xsd:element name="pivotAreas" type="CT_PivotAreas">
            <xsd:annotation>
                <xsd:documentation>Pivot Areas</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="extLst" minOccurs="0" type="CT_ExtensionList">
        </xsd:element>
    </xsd:sequence>
    <xsd:attribute name="scope" type="ST_Scope" default="selection">
        <xsd:annotation>
            <xsd:documentation>Conditional Formatting Scope</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="type" type="ST_Type" default="none">
        <xsd:annotation>
            <xsd:documentation>Conditional Formatting Rule Type</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="priority" use="required" type="xsd:unsignedInt">
        <xsd:annotation>
            <xsd:documentation>Priority</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
pivotAreas nsM:pivotAreas (1) (1)
extLst nsM:extLst 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
scope nsM:scope selection (Optional)
type nsM:type none (Optional)
priority nsM:priority Required
Collapse Derivation Tree:
Collapse References:
nsM:conditionalFormat
