Definition Type: ComplexType
Name: CT_BarChart
Namespace: http://schemas.openxmlformats.org/drawingml/2006/chart
Containing Schema: dml-chart.xsd
Abstract
Collapse XSD Schema Diagram:

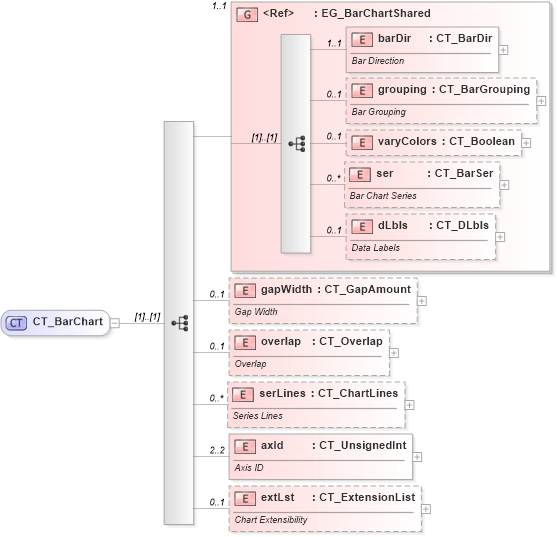

Drilldown into extLst in schema dml-chart_xsd Drilldown into axId in schema dml-chart_xsd Drilldown into serLines in schema dml-chart_xsd Drilldown into overlap in schema dml-chart_xsd Drilldown into gapWidth in schema dml-chart_xsd Drilldown into dLbls in schema dml-chart_xsd Drilldown into ser in schema dml-chart_xsd Drilldown into varyColors in schema dml-chart_xsd Drilldown into grouping in schema dml-chart_xsd Drilldown into barDir in schema dml-chart_xsd Drilldown into EG_BarChartShared in schema dml-chart_xsdXSD Diagram of CT_BarChart in schema dml-chart_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_BarChart">
    <xsd:sequence>
        <xsd:group ref="EG_BarChartShared" minOccurs="1" maxOccurs="1" />
        <xsd:element name="gapWidth" type="CT_GapAmount" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Gap Width</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="overlap" type="CT_Overlap" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Overlap</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="serLines" type="CT_ChartLines" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>Series Lines</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="axId" type="CT_UnsignedInt" minOccurs="2" maxOccurs="2">
            <xsd:annotation>
                <xsd:documentation>Axis ID</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="extLst" type="CT_ExtensionList" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Chart Extensibility</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
barDir nsA:barDir 1 1
grouping nsA:grouping 0 1
varyColors nsA:varyColors 0 1
ser nsA:ser 0 unbounded
dLbls nsA:dLbls 0 1
gapWidth nsA:gapWidth 0 1
overlap nsA:overlap 0 1
serLines nsA:serLines 0 unbounded
axId nsA:axId 2 2
extLst nsA:extLst 0 1
<xs:group> nsA:EG_BarChartShared 1 1
Collapse Derivation Tree:
Collapse References:
nsA:barChart
