Definition Type: ComplexType
Name: CT_CommonSlideData
Namespace: http://schemas.openxmlformats.org/presentationml/2006/main
Containing Schema: pml-slide.xsd
Abstract

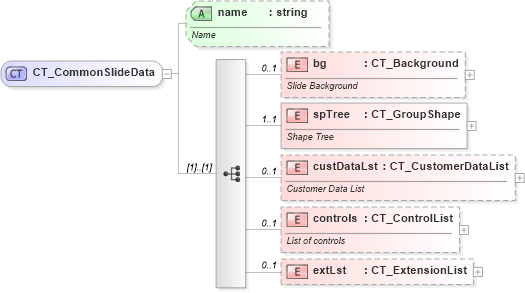

Collapse XSD Schema Diagram:
Drilldown into extLst in schema pml-slide_xsd Drilldown into controls in schema pml-slide_xsd Drilldown into custDataLst in schema pml-slide_xsd Drilldown into spTree in schema pml-slide_xsd Drilldown into bg in schema pml-slide_xsd Drilldown into name in schema pml-slide_xsdXSD Diagram of CT_CommonSlideData in schema pml-slide_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_CommonSlideData">
    <xsd:sequence>
        <xsd:element name="bg" type="CT_Background" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Slide Background</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="spTree" type="CT_GroupShape" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Shape Tree</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="custDataLst" type="CT_CustomerDataList" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Customer Data List</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="controls" type="CT_ControlList" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>List of controls</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="extLst" type="CT_ExtensionList" minOccurs="0" maxOccurs="1" />
    </xsd:sequence>
    <xsd:attribute name="name" type="xsd:string" use="optional" default="">
        <xsd:annotation>
            <xsd:documentation>Name</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
bg p:bg 0 1
spTree p:spTree 1 1
custDataLst p:custDataLst 0 1
controls p:controls 0 1
extLst p:extLst 0 1
Collapse Child Attributes:
Name Type Default Value Use
name p:name Optional
Collapse Derivation Tree:
Collapse References:
p:cSld, p:cSld, p:cSld, p:cSld, p:cSld, p:cSld
