Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: Element
Name: spTree
Namespace: http://schemas.openxmlformats.org/presentationml/2006/main
Type: p:CT_GroupShape
Containing Schema: pml-slide.xsd
MinOccurs 1
MaxOccurs 1
Abstract
Documentation:
Shape Tree
Collapse XSD Schema Diagram:

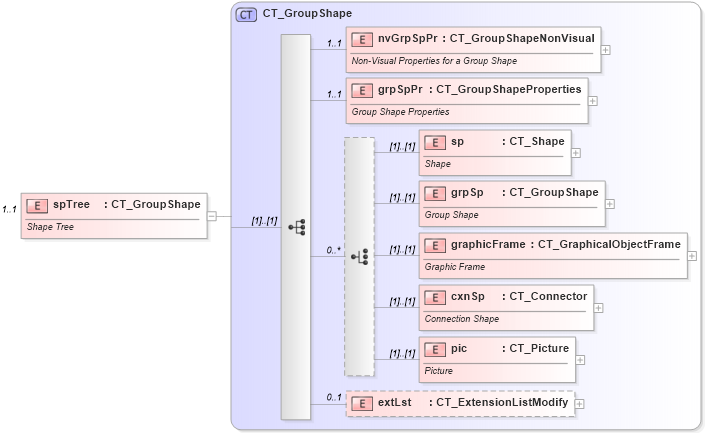

Drilldown into extLst in schema pml-slide_xsd Drilldown into pic in schema pml-slide_xsd Drilldown into cxnSp in schema pml-slide_xsd Drilldown into graphicFrame in schema pml-slide_xsd Drilldown into grpSp in schema pml-slide_xsd Drilldown into sp in schema pml-slide_xsd Drilldown into grpSpPr in schema pml-slide_xsd Drilldown into nvGrpSpPr in schema pml-slide_xsd Drilldown into CT_GroupShape in schema pml-slide_xsdXSD Diagram of spTree in schema pml-slide_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:element name="spTree" type="CT_GroupShape" minOccurs="1" maxOccurs="1">
    <xsd:annotation>
        <xsd:documentation>Shape Tree</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
nvGrpSpPr p:nvGrpSpPr 1 1
grpSpPr p:grpSpPr 1 1
sp p:sp (1) (1)
grpSp p:grpSp (1) (1)
graphicFrame p:graphicFrame (1) (1)
cxnSp p:cxnSp (1) (1)
pic p:pic (1) (1)
extLst p:extLst 0 1
Collapse Derivation Tree:
