Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: Element
Name: nvGrpSpPr
Namespace: http://schemas.openxmlformats.org/presentationml/2006/main
Type: p:CT_GroupShapeNonVisual
Containing Schema: pml-slide.xsd
MinOccurs 1
MaxOccurs 1
Abstract
Documentation:
Non-Visual Properties for a Group Shape

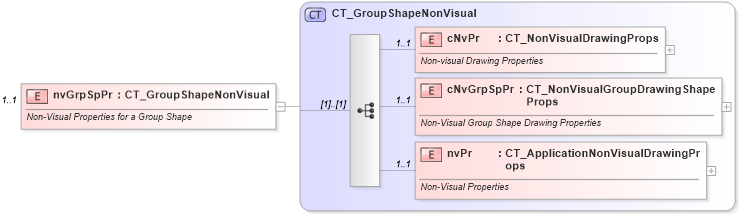

Collapse XSD Schema Diagram:
Drilldown into nvPr in schema pml-slide_xsd Drilldown into cNvGrpSpPr in schema pml-slide_xsd Drilldown into cNvPr in schema pml-slide_xsd Drilldown into CT_GroupShapeNonVisual in schema pml-slide_xsdXSD Diagram of nvGrpSpPr in schema pml-slide_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:element name="nvGrpSpPr" type="CT_GroupShapeNonVisual" minOccurs="1" maxOccurs="1">
    <xsd:annotation>
        <xsd:documentation>Non-Visual Properties for a Group Shape</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
cNvPr p:cNvPr 1 1
cNvGrpSpPr p:cNvGrpSpPr 1 1
nvPr p:nvPr 1 1
Collapse Derivation Tree:
