Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: Element
Name: nvPr
Namespace: http://schemas.openxmlformats.org/presentationml/2006/main
Type: p:CT_ApplicationNonVisualDrawingProps
Containing Schema: pml-slide.xsd
MinOccurs 1
MaxOccurs 1
Abstract
Documentation:
Non-Visual Properties

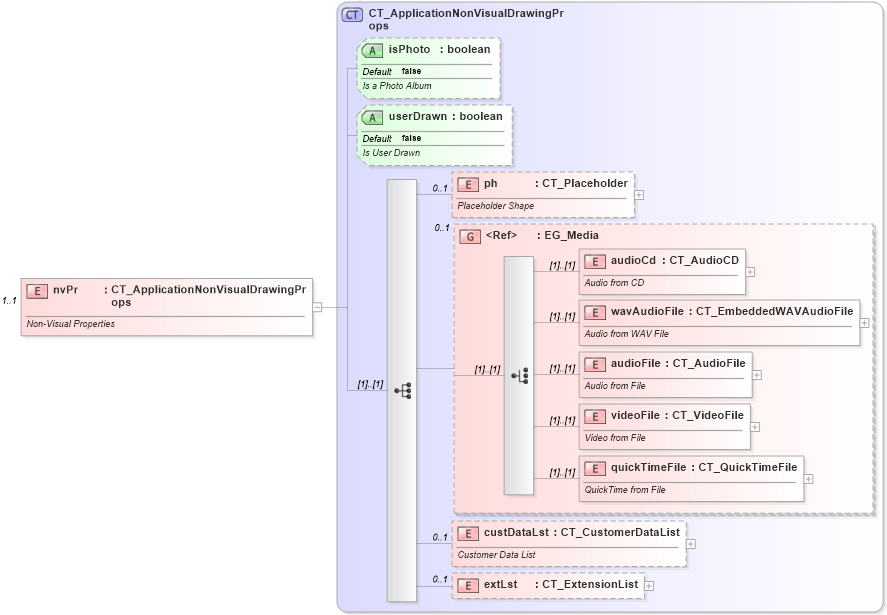

Collapse XSD Schema Diagram:
Drilldown into extLst in schema pml-slide_xsd Drilldown into custDataLst in schema pml-slide_xsd Drilldown into quickTimeFile in schema dml-audiovideo_xsd Drilldown into videoFile in schema dml-audiovideo_xsd Drilldown into audioFile in schema dml-audiovideo_xsd Drilldown into wavAudioFile in schema dml-audiovideo_xsd Drilldown into audioCd in schema dml-audiovideo_xsd Drilldown into EG_Media in schema dml-audiovideo_xsd Drilldown into ph in schema pml-slide_xsd Drilldown into userDrawn in schema pml-slide_xsd Drilldown into isPhoto in schema pml-slide_xsd Drilldown into CT_ApplicationNonVisualDrawingProps in schema pml-slide_xsdXSD Diagram of nvPr in schema pml-slide_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:element name="nvPr" type="CT_ApplicationNonVisualDrawingProps" minOccurs="1" maxOccurs="1">
    <xsd:annotation>
        <xsd:documentation>Non-Visual Properties</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ph p:ph 0 1
audioCd a:audioCd (1) (1)
wavAudioFile a:wavAudioFile (1) (1)
audioFile a:audioFile (1) (1)
videoFile a:videoFile (1) (1)
quickTimeFile a:quickTimeFile (1) (1)
custDataLst p:custDataLst 0 1
extLst p:extLst 0 1
<xs:group> a:EG_Media 0 1
Collapse Child Attributes:
Name Type Default Value Use
isPhoto p:isPhoto false Optional
userDrawn p:userDrawn false Optional
Collapse Derivation Tree:
