Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: ComplexType
Name: CT_ApplicationNonVisualDrawingProps
Namespace: http://schemas.openxmlformats.org/presentationml/2006/main
Containing Schema: pml-slide.xsd
Abstract

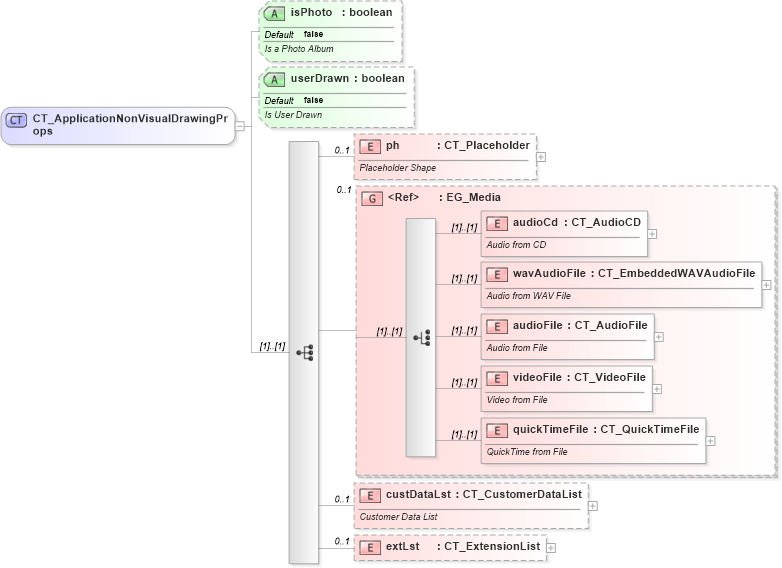

Collapse XSD Schema Diagram:
Drilldown into extLst in schema pml-slide_xsd Drilldown into custDataLst in schema pml-slide_xsd Drilldown into quickTimeFile in schema dml-audiovideo_xsd Drilldown into videoFile in schema dml-audiovideo_xsd Drilldown into audioFile in schema dml-audiovideo_xsd Drilldown into wavAudioFile in schema dml-audiovideo_xsd Drilldown into audioCd in schema dml-audiovideo_xsd Drilldown into EG_Media in schema dml-audiovideo_xsd Drilldown into ph in schema pml-slide_xsd Drilldown into userDrawn in schema pml-slide_xsd Drilldown into isPhoto in schema pml-slide_xsdXSD Diagram of CT_ApplicationNonVisualDrawingProps in schema pml-slide_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_ApplicationNonVisualDrawingProps">
    <xsd:sequence>
        <xsd:element name="ph" type="CT_Placeholder" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Placeholder Shape</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:group ref="a:EG_Media" minOccurs="0" maxOccurs="1" />
        <xsd:element name="custDataLst" type="CT_CustomerDataList" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Customer Data List</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="extLst" type="CT_ExtensionList" minOccurs="0" maxOccurs="1" />
    </xsd:sequence>
    <xsd:attribute name="isPhoto" type="xsd:boolean" use="optional" default="false">
        <xsd:annotation>
            <xsd:documentation>Is a Photo Album</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="userDrawn" type="xsd:boolean" use="optional" default="false">
        <xsd:annotation>
            <xsd:documentation>Is User Drawn</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ph p:ph 0 1
audioCd a:audioCd (1) (1)
wavAudioFile a:wavAudioFile (1) (1)
audioFile a:audioFile (1) (1)
videoFile a:videoFile (1) (1)
quickTimeFile a:quickTimeFile (1) (1)
custDataLst p:custDataLst 0 1
extLst p:extLst 0 1
<xs:group> a:EG_Media 0 1
Collapse Child Attributes:
Name Type Default Value Use
isPhoto p:isPhoto false Optional
userDrawn p:userDrawn false Optional
Collapse Derivation Tree:
Collapse References:
p:nvPr, p:nvPr, p:nvPr, p:nvPr, p:nvPr
