Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: Element
Name: ph
Namespace: http://schemas.openxmlformats.org/presentationml/2006/main
Type: p:CT_Placeholder
Containing Schema: pml-slide.xsd
MinOccurs 0
MaxOccurs 1
Abstract
Documentation:
Placeholder Shape

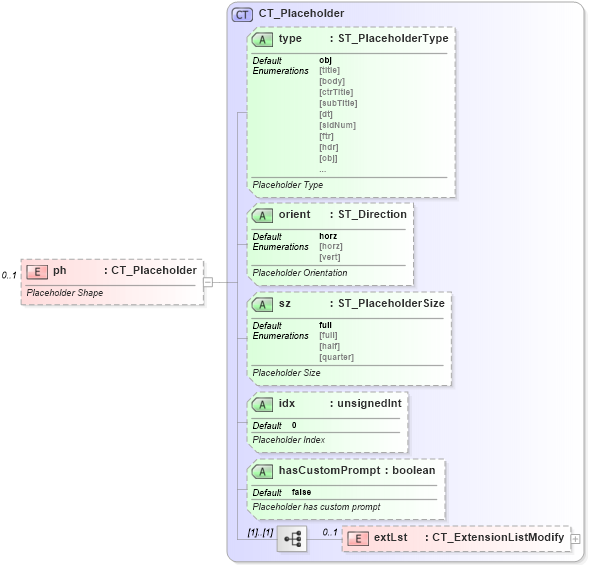

Collapse XSD Schema Diagram:
Drilldown into extLst in schema pml-slide_xsd Drilldown into hasCustomPrompt in schema pml-slide_xsd Drilldown into idx in schema pml-slide_xsd Drilldown into sz in schema pml-slide_xsd Drilldown into orient in schema pml-slide_xsd Drilldown into type in schema pml-slide_xsd Drilldown into CT_Placeholder in schema pml-slide_xsdXSD Diagram of ph in schema pml-slide_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:element name="ph" type="CT_Placeholder" minOccurs="0" maxOccurs="1">
    <xsd:annotation>
        <xsd:documentation>Placeholder Shape</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
extLst p:extLst 0 1
Collapse Child Attributes:
Name Type Default Value Use
type p:type obj Optional
orient p:orient horz Optional
sz p:sz full Optional
idx p:idx 0 Optional
hasCustomPrompt p:hasCustomPrompt false Optional
Collapse Derivation Tree:
