Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: ComplexType
Name: CT_Placeholder
Namespace: http://schemas.openxmlformats.org/presentationml/2006/main
Containing Schema: pml-slide.xsd
Abstract

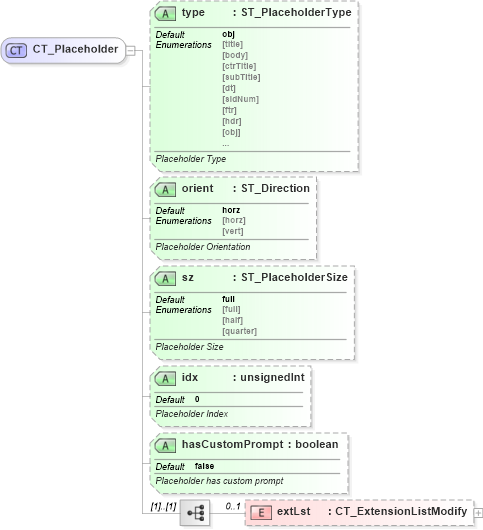

Collapse XSD Schema Diagram:
Drilldown into extLst in schema pml-slide_xsd Drilldown into hasCustomPrompt in schema pml-slide_xsd Drilldown into idx in schema pml-slide_xsd Drilldown into sz in schema pml-slide_xsd Drilldown into orient in schema pml-slide_xsd Drilldown into type in schema pml-slide_xsdXSD Diagram of CT_Placeholder in schema pml-slide_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_Placeholder">
    <xsd:sequence>
        <xsd:element name="extLst" type="CT_ExtensionListModify" minOccurs="0" maxOccurs="1" />
    </xsd:sequence>
    <xsd:attribute name="type" type="ST_PlaceholderType" use="optional" default="obj">
        <xsd:annotation>
            <xsd:documentation>Placeholder Type</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="orient" type="ST_Direction" use="optional" default="horz">
        <xsd:annotation>
            <xsd:documentation>Placeholder Orientation</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="sz" type="ST_PlaceholderSize" use="optional" default="full">
        <xsd:annotation>
            <xsd:documentation>Placeholder Size</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="idx" type="xsd:unsignedInt" use="optional" default="0">
        <xsd:annotation>
            <xsd:documentation>Placeholder Index</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="hasCustomPrompt" type="xsd:boolean" use="optional" default="false">
        <xsd:annotation>
            <xsd:documentation>Placeholder has custom prompt</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
extLst p:extLst 0 1
Collapse Child Attributes:
Name Type Default Value Use
type p:type obj Optional
orient p:orient horz Optional
sz p:sz full Optional
idx p:idx 0 Optional
hasCustomPrompt p:hasCustomPrompt false Optional
Collapse Derivation Tree:
  • CT_Placeholder
Collapse References:
p:ph
