Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: ComplexType
Name: CT_GroupShapeNonVisual
Namespace: http://schemas.openxmlformats.org/presentationml/2006/main
Containing Schema: pml-slide.xsd
Abstract
Collapse XSD Schema Diagram:

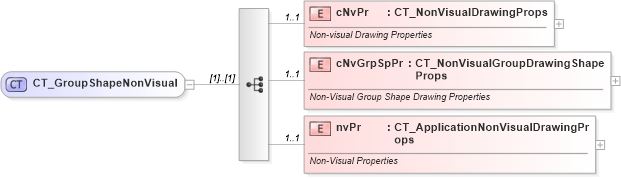

Drilldown into nvPr in schema pml-slide_xsd Drilldown into cNvGrpSpPr in schema pml-slide_xsd Drilldown into cNvPr in schema pml-slide_xsdXSD Diagram of CT_GroupShapeNonVisual in schema pml-slide_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_GroupShapeNonVisual">
    <xsd:sequence>
        <xsd:element name="cNvPr" type="a:CT_NonVisualDrawingProps" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Non-visual Drawing Properties</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="cNvGrpSpPr" type="a:CT_NonVisualGroupDrawingShapeProps" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Non-Visual Group Shape Drawing Properties</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="nvPr" type="CT_ApplicationNonVisualDrawingProps" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Non-Visual Properties</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
cNvPr p:cNvPr 1 1
cNvGrpSpPr p:cNvGrpSpPr 1 1
nvPr p:nvPr 1 1
Collapse Derivation Tree:
Collapse References:
p:nvGrpSpPr
