Definition Type: Element
Name: graphicFrame
Namespace: http://schemas.openxmlformats.org/presentationml/2006/main
Type: p:CT_GraphicalObjectFrame
Containing Schema: pml-slide.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract
Documentation:
Graphic Frame
Collapse XSD Schema Diagram:

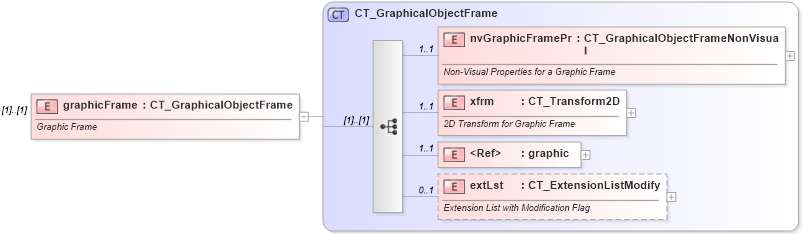

Drilldown into extLst in schema pml-slide_xsd Drilldown into graphic in schema dml-graphicalobject_xsd Drilldown into xfrm in schema pml-slide_xsd Drilldown into nvGraphicFramePr in schema pml-slide_xsd Drilldown into CT_GraphicalObjectFrame in schema pml-slide_xsdXSD Diagram of graphicFrame in schema pml-slide_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:element name="graphicFrame" type="CT_GraphicalObjectFrame">
    <xsd:annotation>
        <xsd:documentation>Graphic Frame</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
nvGraphicFramePr p:nvGraphicFramePr 1 1
xfrm p:xfrm 1 1
graphic a:graphic 1 1
extLst p:extLst 0 1
Collapse Derivation Tree:
