Definition Type: ComplexType
Name: CT_GraphicalObjectFrame
Namespace: http://schemas.openxmlformats.org/presentationml/2006/main
Containing Schema: pml-slide.xsd
Abstract

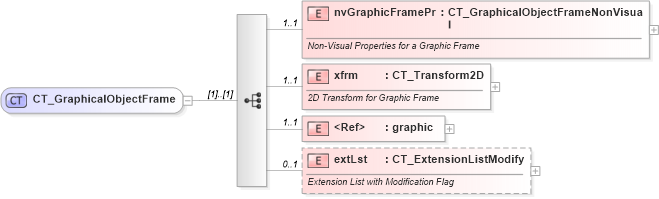

Collapse XSD Schema Diagram:
Drilldown into extLst in schema pml-slide_xsd Drilldown into graphic in schema dml-graphicalobject_xsd Drilldown into xfrm in schema pml-slide_xsd Drilldown into nvGraphicFramePr in schema pml-slide_xsdXSD Diagram of CT_GraphicalObjectFrame in schema pml-slide_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_GraphicalObjectFrame">
    <xsd:sequence>
        <xsd:element name="nvGraphicFramePr" type="CT_GraphicalObjectFrameNonVisual" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Non-Visual Properties for a Graphic Frame</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="xfrm" type="a:CT_Transform2D" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>2D Transform for Graphic Frame</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="a:graphic" minOccurs="1" maxOccurs="1" />
        <xsd:element name="extLst" type="CT_ExtensionListModify" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Extension List with Modification Flag</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
nvGraphicFramePr p:nvGraphicFramePr 1 1
xfrm p:xfrm 1 1
graphic a:graphic 1 1
extLst p:extLst 0 1
Collapse Derivation Tree:
Collapse References:
p:graphicFrame
