Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: ComplexType
Name: CT_Cxn
Namespace: http://schemas.openxmlformats.org/drawingml/2006/diagram
Containing Schema: dml-diagramDataModel.xsd
Abstract

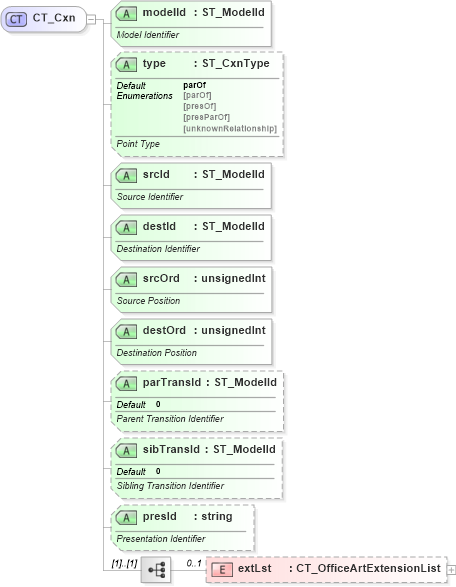

Collapse XSD Schema Diagram:
Drilldown into extLst in schema dml-diagramdatamodel_xsd Drilldown into presId in schema dml-diagramdatamodel_xsd Drilldown into sibTransId in schema dml-diagramdatamodel_xsd Drilldown into parTransId in schema dml-diagramdatamodel_xsd Drilldown into destOrd in schema dml-diagramdatamodel_xsd Drilldown into srcOrd in schema dml-diagramdatamodel_xsd Drilldown into destId in schema dml-diagramdatamodel_xsd Drilldown into srcId in schema dml-diagramdatamodel_xsd Drilldown into type in schema dml-diagramdatamodel_xsd Drilldown into modelId in schema dml-diagramdatamodel_xsdXSD Diagram of CT_Cxn in schema dml-diagramdatamodel_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_Cxn">
    <xsd:sequence>
        <xsd:element name="extLst" type="a:CT_OfficeArtExtensionList" minOccurs="0" maxOccurs="1" />
    </xsd:sequence>
    <xsd:attribute name="modelId" type="ST_ModelId" use="required">
        <xsd:annotation>
            <xsd:documentation>Model Identifier</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="type" type="ST_CxnType" use="optional" default="parOf">
        <xsd:annotation>
            <xsd:documentation>Point Type</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="srcId" type="ST_ModelId" use="required">
        <xsd:annotation>
            <xsd:documentation>Source Identifier</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="destId" type="ST_ModelId" use="required">
        <xsd:annotation>
            <xsd:documentation>Destination Identifier</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="srcOrd" type="xsd:unsignedInt" use="required">
        <xsd:annotation>
            <xsd:documentation>Source Position</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="destOrd" type="xsd:unsignedInt" use="required">
        <xsd:annotation>
            <xsd:documentation>Destination Position</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="parTransId" type="ST_ModelId" use="optional" default="0">
        <xsd:annotation>
            <xsd:documentation>Parent Transition Identifier</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="sibTransId" type="ST_ModelId" use="optional" default="0">
        <xsd:annotation>
            <xsd:documentation>Sibling Transition Identifier</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="presId" type="xsd:string" use="optional" default="">
        <xsd:annotation>
            <xsd:documentation>Presentation Identifier</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
extLst nsC:extLst 0 1
Collapse Child Attributes:
Name Type Default Value Use
modelId nsC:modelId Required
type nsC:type parOf Optional
srcId nsC:srcId Required
destId nsC:destId Required
srcOrd nsC:srcOrd Required
destOrd nsC:destOrd Required
parTransId nsC:parTransId 0 Optional
sibTransId nsC:sibTransId 0 Optional
presId nsC:presId Optional
Collapse Derivation Tree:
Collapse References:
nsC:cxn
