Definition Type: Element
Name: cxn
Namespace: http://schemas.openxmlformats.org/drawingml/2006/diagram
Type: nsC:CT_Cxn
Containing Schema: dml-diagramDataModel.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract
Documentation:
Connection
Collapse XSD Schema Diagram:

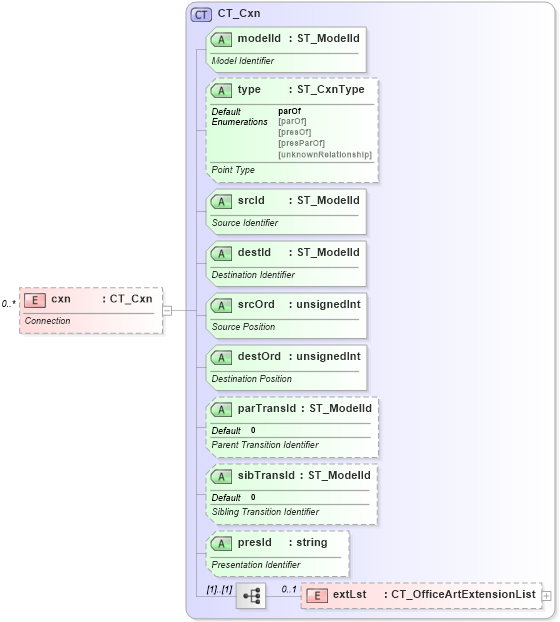

Drilldown into extLst in schema dml-diagramdatamodel_xsd Drilldown into presId in schema dml-diagramdatamodel_xsd Drilldown into sibTransId in schema dml-diagramdatamodel_xsd Drilldown into parTransId in schema dml-diagramdatamodel_xsd Drilldown into destOrd in schema dml-diagramdatamodel_xsd Drilldown into srcOrd in schema dml-diagramdatamodel_xsd Drilldown into destId in schema dml-diagramdatamodel_xsd Drilldown into srcId in schema dml-diagramdatamodel_xsd Drilldown into type in schema dml-diagramdatamodel_xsd Drilldown into modelId in schema dml-diagramdatamodel_xsd Drilldown into CT_Cxn in schema dml-diagramdatamodel_xsdXSD Diagram of cxn in schema dml-diagramdatamodel_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:element name="cxn" type="CT_Cxn" minOccurs="0" maxOccurs="unbounded">
    <xsd:annotation>
        <xsd:documentation>Connection</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
extLst nsC:extLst 0 1
Collapse Child Attributes:
Name Type Default Value Use
modelId nsC:modelId Required
type nsC:type parOf Optional
srcId nsC:srcId Required
destId nsC:destId Required
srcOrd nsC:srcOrd Required
destOrd nsC:destOrd Required
parTransId nsC:parTransId 0 Optional
sibTransId nsC:sibTransId 0 Optional
presId nsC:presId Optional
