Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: ComplexType
Name: CT_DateAx
Namespace: http://schemas.openxmlformats.org/drawingml/2006/chart
Containing Schema: dml-chart.xsd
Abstract

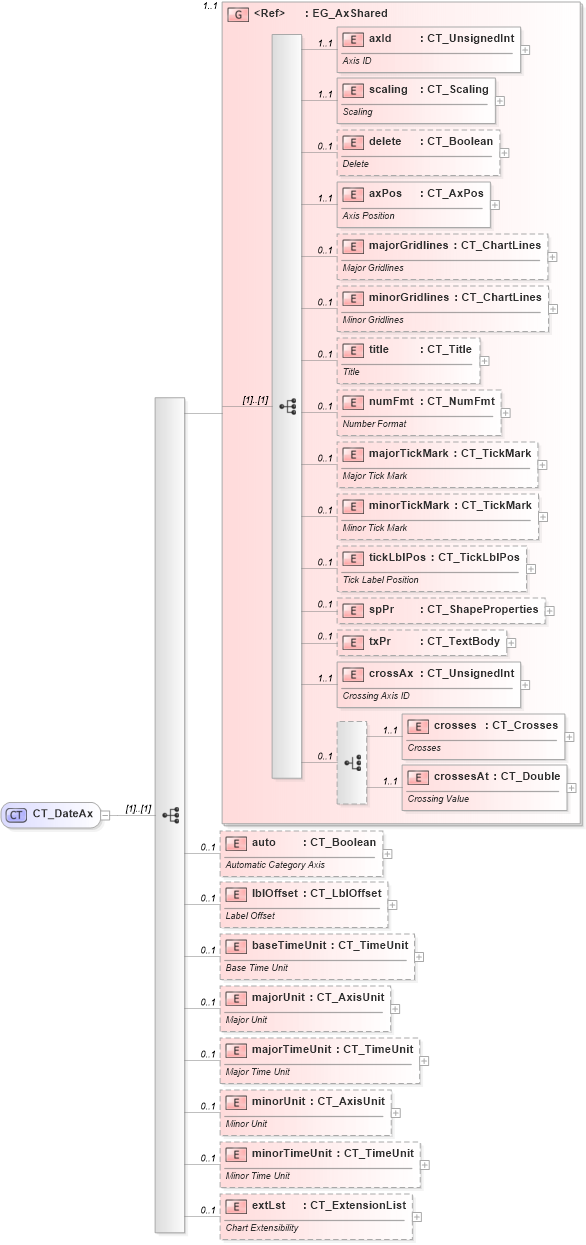

Collapse XSD Schema Diagram:
Drilldown into extLst in schema dml-chart_xsd Drilldown into minorTimeUnit in schema dml-chart_xsd Drilldown into minorUnit in schema dml-chart_xsd Drilldown into majorTimeUnit in schema dml-chart_xsd Drilldown into majorUnit in schema dml-chart_xsd Drilldown into baseTimeUnit in schema dml-chart_xsd Drilldown into lblOffset in schema dml-chart_xsd Drilldown into auto in schema dml-chart_xsd Drilldown into crossesAt in schema dml-chart_xsd Drilldown into crosses in schema dml-chart_xsd Drilldown into crossAx in schema dml-chart_xsd Drilldown into txPr in schema dml-chart_xsd Drilldown into spPr in schema dml-chart_xsd Drilldown into tickLblPos in schema dml-chart_xsd Drilldown into minorTickMark in schema dml-chart_xsd Drilldown into majorTickMark in schema dml-chart_xsd Drilldown into numFmt in schema dml-chart_xsd Drilldown into title in schema dml-chart_xsd Drilldown into minorGridlines in schema dml-chart_xsd Drilldown into majorGridlines in schema dml-chart_xsd Drilldown into axPos in schema dml-chart_xsd Drilldown into delete in schema dml-chart_xsd Drilldown into scaling in schema dml-chart_xsd Drilldown into axId in schema dml-chart_xsd Drilldown into EG_AxShared in schema dml-chart_xsdXSD Diagram of CT_DateAx in schema dml-chart_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_DateAx">
    <xsd:sequence>
        <xsd:group ref="EG_AxShared" minOccurs="1" maxOccurs="1" />
        <xsd:element name="auto" type="CT_Boolean" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Automatic Category Axis</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="lblOffset" type="CT_LblOffset" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Label Offset</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="baseTimeUnit" type="CT_TimeUnit" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Base Time Unit</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="majorUnit" type="CT_AxisUnit" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Major Unit</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="majorTimeUnit" type="CT_TimeUnit" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Major Time Unit</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="minorUnit" type="CT_AxisUnit" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Minor Unit</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="minorTimeUnit" type="CT_TimeUnit" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Minor Time Unit</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="extLst" type="CT_ExtensionList" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Chart Extensibility</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
axId nsA:axId 1 1
scaling nsA:scaling 1 1
delete nsA:delete 0 1
axPos nsA:axPos 1 1
majorGridlines nsA:majorGridlines 0 1
minorGridlines nsA:minorGridlines 0 1
title nsA:title 0 1
numFmt nsA:numFmt 0 1
majorTickMark nsA:majorTickMark 0 1
minorTickMark nsA:minorTickMark 0 1
tickLblPos nsA:tickLblPos 0 1
spPr nsA:spPr 0 1
txPr nsA:txPr 0 1
crossAx nsA:crossAx 1 1
crosses nsA:crosses 1 1
crossesAt nsA:crossesAt 1 1
auto nsA:auto 0 1
lblOffset nsA:lblOffset 0 1
baseTimeUnit nsA:baseTimeUnit 0 1
majorUnit nsA:majorUnit 0 1
majorTimeUnit nsA:majorTimeUnit 0 1
minorUnit nsA:minorUnit 0 1
minorTimeUnit nsA:minorTimeUnit 0 1
extLst nsA:extLst 0 1
<xs:group> nsA:EG_AxShared 1 1
Collapse Derivation Tree:
Collapse References:
nsA:dateAx
