Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: ComplexType
Name: CT_Dxf
Namespace: http://schemas.openxmlformats.org/spreadsheetml/2006/main
Containing Schema: sml-styles.xsd
Abstract

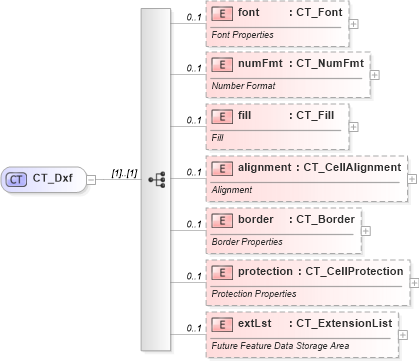

Collapse XSD Schema Diagram:
Drilldown into extLst in schema sml-styles_xsd Drilldown into protection in schema sml-styles_xsd Drilldown into border in schema sml-styles_xsd Drilldown into alignment in schema sml-styles_xsd Drilldown into fill in schema sml-styles_xsd Drilldown into numFmt in schema sml-styles_xsd Drilldown into font in schema sml-styles_xsdXSD Diagram of CT_Dxf in schema sml-styles_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_Dxf">
    <xsd:sequence>
        <xsd:element name="font" type="CT_Font" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Font Properties</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="numFmt" type="CT_NumFmt" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Number Format</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="fill" type="CT_Fill" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Fill</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="alignment" type="CT_CellAlignment" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Alignment</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="border" type="CT_Border" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Border Properties</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="protection" type="CT_CellProtection" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Protection Properties</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="extLst" type="CT_ExtensionList" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Future Feature Data Storage Area</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
font nsM:font 0 1
numFmt nsM:numFmt 0 1
fill nsM:fill 0 1
alignment nsM:alignment 0 1
border nsM:border 0 1
protection nsM:protection 0 1
extLst nsM:extLst 0 1
Collapse Derivation Tree:
Collapse References:
nsM:dxf, nsM:dxfnsM:ndxf, nsM:odxf,
