Definition Type: ComplexType
Name: CT_EffectExtent
Namespace: http://schemas.openxmlformats.org/drawingml/2006/wordprocessingDrawing
Containing Schema: dml-wordprocessingDrawing.xsd
Abstract
Collapse XSD Schema Diagram:

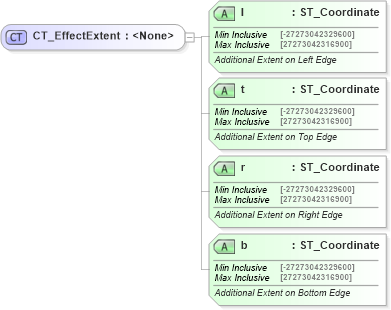

Drilldown into b in schema dml-wordprocessingdrawing_xsd Drilldown into r in schema dml-wordprocessingdrawing_xsd Drilldown into t in schema dml-wordprocessingdrawing_xsd Drilldown into l in schema dml-wordprocessingdrawing_xsdXSD Diagram of CT_EffectExtent in schema dml-wordprocessingdrawing_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_EffectExtent">
    <xsd:attribute name="l" type="a:ST_Coordinate" use="required">
        <xsd:annotation>
            <xsd:documentation>Additional Extent on Left Edge</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="t" type="a:ST_Coordinate" use="required">
        <xsd:annotation>
            <xsd:documentation>Additional Extent on Top Edge</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="r" type="a:ST_Coordinate" use="required">
        <xsd:annotation>
            <xsd:documentation>Additional Extent on Right Edge</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="b" type="a:ST_Coordinate" use="required">
        <xsd:annotation>
            <xsd:documentation>Additional Extent on Bottom Edge</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Attributes:
Name Type Default Value Use
l wp:l Required
t wp:t Required
r wp:r Required
b wp:b Required
Collapse Derivation Tree:
Collapse References:
wp:effectExtent, wp:effectExtent, wp:effectExtent, wp:effectExtent
