Definition Type: Element
Name: effectExtent
Namespace: http://schemas.openxmlformats.org/drawingml/2006/wordprocessingDrawing
Type: wp:CT_EffectExtent
Containing Schema: dml-wordprocessingDrawing.xsd
MinOccurs 0
MaxOccurs (1)
Abstract
Documentation:
Inline Wrapping Extent

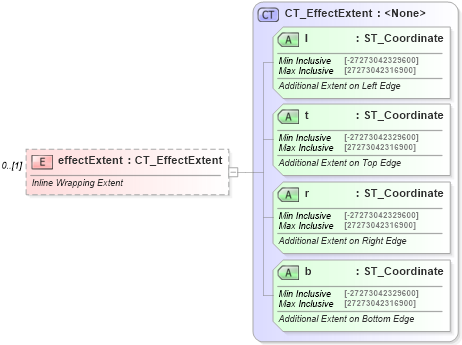

Collapse XSD Schema Diagram:
Drilldown into b in schema dml-wordprocessingdrawing_xsd Drilldown into r in schema dml-wordprocessingdrawing_xsd Drilldown into t in schema dml-wordprocessingdrawing_xsd Drilldown into l in schema dml-wordprocessingdrawing_xsd Drilldown into CT_EffectExtent in schema dml-wordprocessingdrawing_xsdXSD Diagram of effectExtent in schema dml-wordprocessingdrawing_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:element name="effectExtent" type="CT_EffectExtent" minOccurs="0">
    <xsd:annotation>
        <xsd:documentation>Inline Wrapping Extent</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Attributes:
Name Type Default Value Use
l wp:l Required
t wp:t Required
r wp:r Required
b wp:b Required
Collapse Derivation Tree:
