Definition Type: ComplexType
Name: CT_FFData
Namespace: http://schemas.openxmlformats.org/wordprocessingml/2006/main
Containing Schema: wml.xsd
Abstract

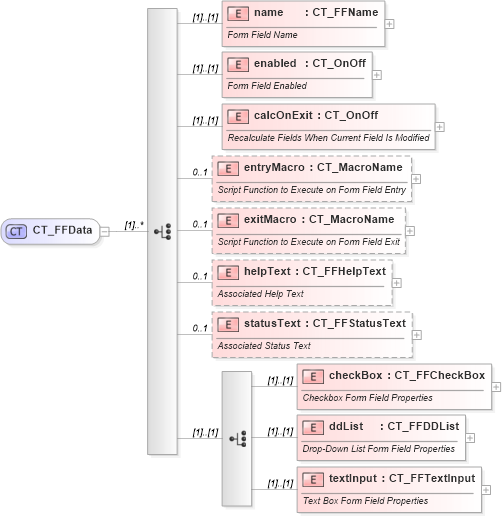

Collapse XSD Schema Diagram:
Drilldown into textInput in schema wml_xsd Drilldown into ddList in schema wml_xsd Drilldown into checkBox in schema wml_xsd Drilldown into statusText in schema wml_xsd Drilldown into helpText in schema wml_xsd Drilldown into exitMacro in schema wml_xsd Drilldown into entryMacro in schema wml_xsd Drilldown into calcOnExit in schema wml_xsd Drilldown into enabled in schema wml_xsd Drilldown into name in schema wml_xsdXSD Diagram of CT_FFData in schema wml_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_FFData">
    <xsd:choice maxOccurs="unbounded">
        <xsd:element name="name" type="CT_FFName">
            <xsd:annotation>
                <xsd:documentation>Form Field Name</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="enabled" type="CT_OnOff">
            <xsd:annotation>
                <xsd:documentation>Form Field Enabled</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="calcOnExit" type="CT_OnOff">
            <xsd:annotation>
                <xsd:documentation>Recalculate Fields When Current Field Is Modified</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="entryMacro" type="CT_MacroName" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Script Function to Execute on Form Field Entry</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="exitMacro" type="CT_MacroName" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Script Function to Execute on Form Field Exit</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="helpText" type="CT_FFHelpText" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Associated Help Text</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="statusText" type="CT_FFStatusText" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Associated Status Text</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:choice>
            <xsd:element name="checkBox" type="CT_FFCheckBox">
                <xsd:annotation>
                    <xsd:documentation>Checkbox Form Field Properties</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
            <xsd:element name="ddList" type="CT_FFDDList">
                <xsd:annotation>
                    <xsd:documentation>Drop-Down List Form Field Properties</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
            <xsd:element name="textInput" type="CT_FFTextInput">
                <xsd:annotation>
                    <xsd:documentation>Text Box Form Field Properties</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
        </xsd:choice>
    </xsd:choice>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
name w:name (1) (1)
enabled w:enabled (1) (1)
calcOnExit w:calcOnExit (1) (1)
entryMacro w:entryMacro 0 1
exitMacro w:exitMacro 0 1
helpText w:helpText 0 1
statusText w:statusText 0 1
checkBox w:checkBox (1) (1)
ddList w:ddList (1) (1)
textInput w:textInput (1) (1)
Collapse Derivation Tree:
Collapse References:
w:ffData
