Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: ComplexType
Name: CT_FldChar
Namespace: http://schemas.openxmlformats.org/wordprocessingml/2006/main
Containing Schema: wml.xsd
Abstract

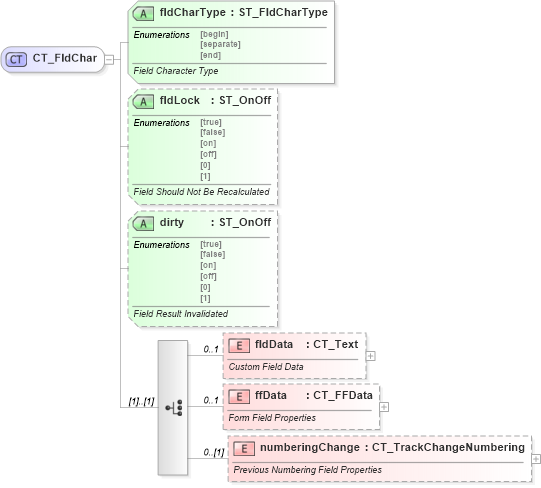

Collapse XSD Schema Diagram:
Drilldown into numberingChange in schema wml_xsd Drilldown into ffData in schema wml_xsd Drilldown into fldData in schema wml_xsd Drilldown into dirty in schema wml_xsd Drilldown into fldLock in schema wml_xsd Drilldown into fldCharType in schema wml_xsdXSD Diagram of CT_FldChar in schema wml_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_FldChar">
    <xsd:choice>
        <xsd:element name="fldData" type="CT_Text" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Custom Field Data</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="ffData" type="CT_FFData" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Form Field Properties</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="numberingChange" type="CT_TrackChangeNumbering" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation>Previous Numbering Field Properties</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:choice>
    <xsd:attribute name="fldCharType" type="ST_FldCharType" use="required">
        <xsd:annotation>
            <xsd:documentation>Field Character Type</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="fldLock" type="ST_OnOff">
        <xsd:annotation>
            <xsd:documentation>Field Should Not Be Recalculated</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="dirty" type="ST_OnOff">
        <xsd:annotation>
            <xsd:documentation>Field Result Invalidated</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
fldData w:fldData 0 1
ffData w:ffData 0 1
numberingChange w:numberingChange 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
fldCharType w:fldCharType Required
fldLock w:fldLock (Optional)
dirty w:dirty (Optional)
Collapse Derivation Tree:
Collapse References:
w:fldChar
