Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: ComplexType
Name: CT_FontReference
Namespace: http://schemas.openxmlformats.org/drawingml/2006/main
Containing Schema: dml-shapeStyle.xsd
Abstract
Collapse XSD Schema Diagram:

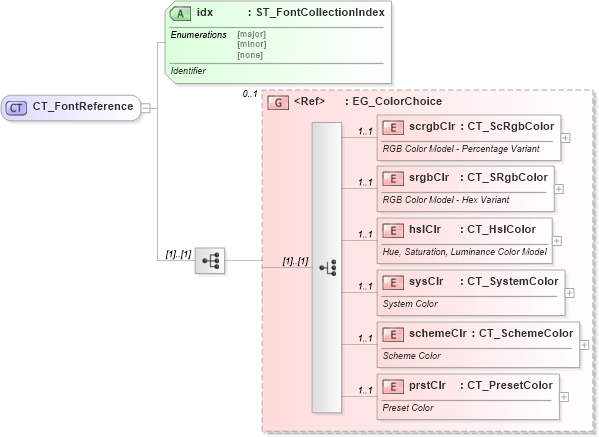

Drilldown into prstClr in schema dml-basetypes_xsd Drilldown into schemeClr in schema dml-basetypes_xsd Drilldown into sysClr in schema dml-basetypes_xsd Drilldown into hslClr in schema dml-basetypes_xsd Drilldown into srgbClr in schema dml-basetypes_xsd Drilldown into scrgbClr in schema dml-basetypes_xsd Drilldown into EG_ColorChoice in schema dml-basetypes_xsd Drilldown into idx in schema dml-shapestyle_xsdXSD Diagram of CT_FontReference in schema dml-shapestyle_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_FontReference">
    <xsd:sequence>
        <xsd:group ref="EG_ColorChoice" minOccurs="0" maxOccurs="1" />
    </xsd:sequence>
    <xsd:attribute name="idx" type="ST_FontCollectionIndex" use="required">
        <xsd:annotation>
            <xsd:documentation>Identifier</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
scrgbClr a:scrgbClr 1 1
srgbClr a:srgbClr 1 1
hslClr a:hslClr 1 1
sysClr a:sysClr 1 1
schemeClr a:schemeClr 1 1
prstClr a:prstClr 1 1
<xs:group> a:EG_ColorChoice 0 1
Collapse Child Attributes:
Name Type Default Value Use
idx a:idx Required
Collapse Derivation Tree:
Collapse References:
a:fontRef, a:fontRef
