Definition Type: ComplexType
Name: CT_GeomRect
Namespace: http://schemas.openxmlformats.org/drawingml/2006/main
Containing Schema: dml-shapeGeometry.xsd
Abstract
Collapse XSD Schema Diagram:

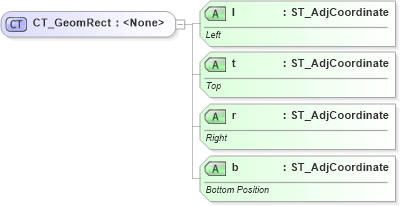

Drilldown into b in schema dml-shapegeometry_xsd Drilldown into r in schema dml-shapegeometry_xsd Drilldown into t in schema dml-shapegeometry_xsd Drilldown into l in schema dml-shapegeometry_xsdXSD Diagram of CT_GeomRect in schema dml-shapegeometry_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_GeomRect">
    <xsd:attribute name="l" type="ST_AdjCoordinate" use="required">
        <xsd:annotation>
            <xsd:documentation>Left</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="t" type="ST_AdjCoordinate" use="required">
        <xsd:annotation>
            <xsd:documentation>Top</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="r" type="ST_AdjCoordinate" use="required">
        <xsd:annotation>
            <xsd:documentation>Right</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="b" type="ST_AdjCoordinate" use="required">
        <xsd:annotation>
            <xsd:documentation>Bottom Position</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Attributes:
Name Type Default Value Use
l a:l Required
t a:t Required
r a:r Required
b a:b Required
Collapse Derivation Tree:
Collapse References:
a:rect
