Definition Type: Element
Name: rect
Namespace: http://schemas.openxmlformats.org/drawingml/2006/main
Type: a:CT_GeomRect
Containing Schema: dml-shapeGeometry.xsd
MinOccurs 0
MaxOccurs 1
Abstract
Documentation:
Shape Text Rectangle

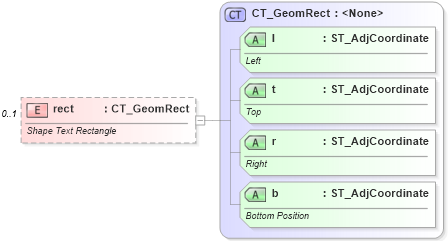

Collapse XSD Schema Diagram:
Drilldown into b in schema dml-shapegeometry_xsd Drilldown into r in schema dml-shapegeometry_xsd Drilldown into t in schema dml-shapegeometry_xsd Drilldown into l in schema dml-shapegeometry_xsd Drilldown into CT_GeomRect in schema dml-shapegeometry_xsdXSD Diagram of rect in schema dml-shapegeometry_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:element name="rect" type="CT_GeomRect" minOccurs="0" maxOccurs="1">
    <xsd:annotation>
        <xsd:documentation>Shape Text Rectangle</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Attributes:
Name Type Default Value Use
l a:l Required
t a:t Required
r a:r Required
b a:b Required
Collapse Derivation Tree:
